Build It. Play It. Make It Yours.

Unleash your inner luthier with the E575DIY Electric Guitar DIY Kit – a premium, ready-to-build set featuring an GS-style double-cutaway design, high-quality components, and a no-soldering, plug-n-play electronics system. Whether you're a first-time builder or a seasoned modder, this kit offers an unmatched DIY experience without compromising on tone, style, or playability.

Features

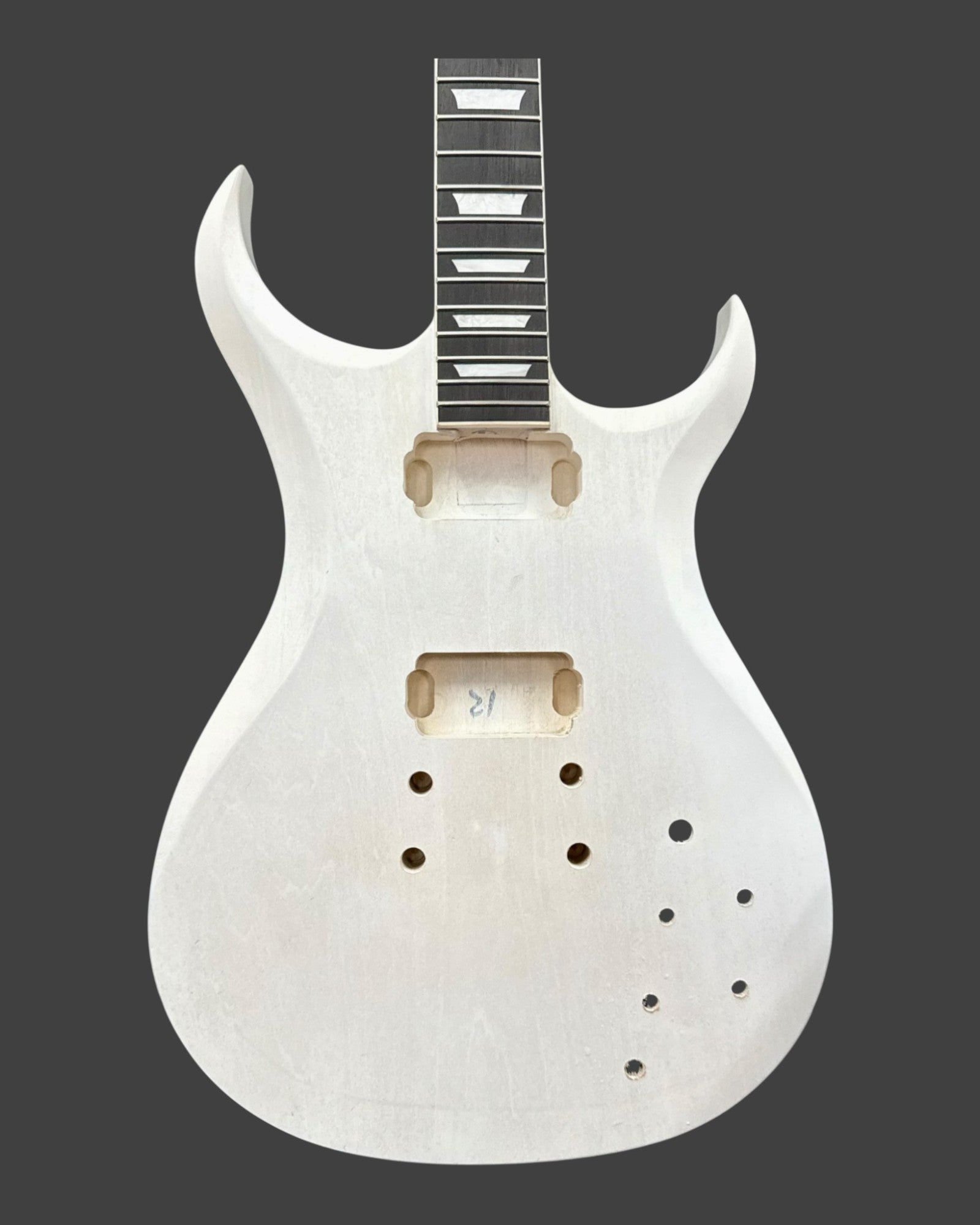

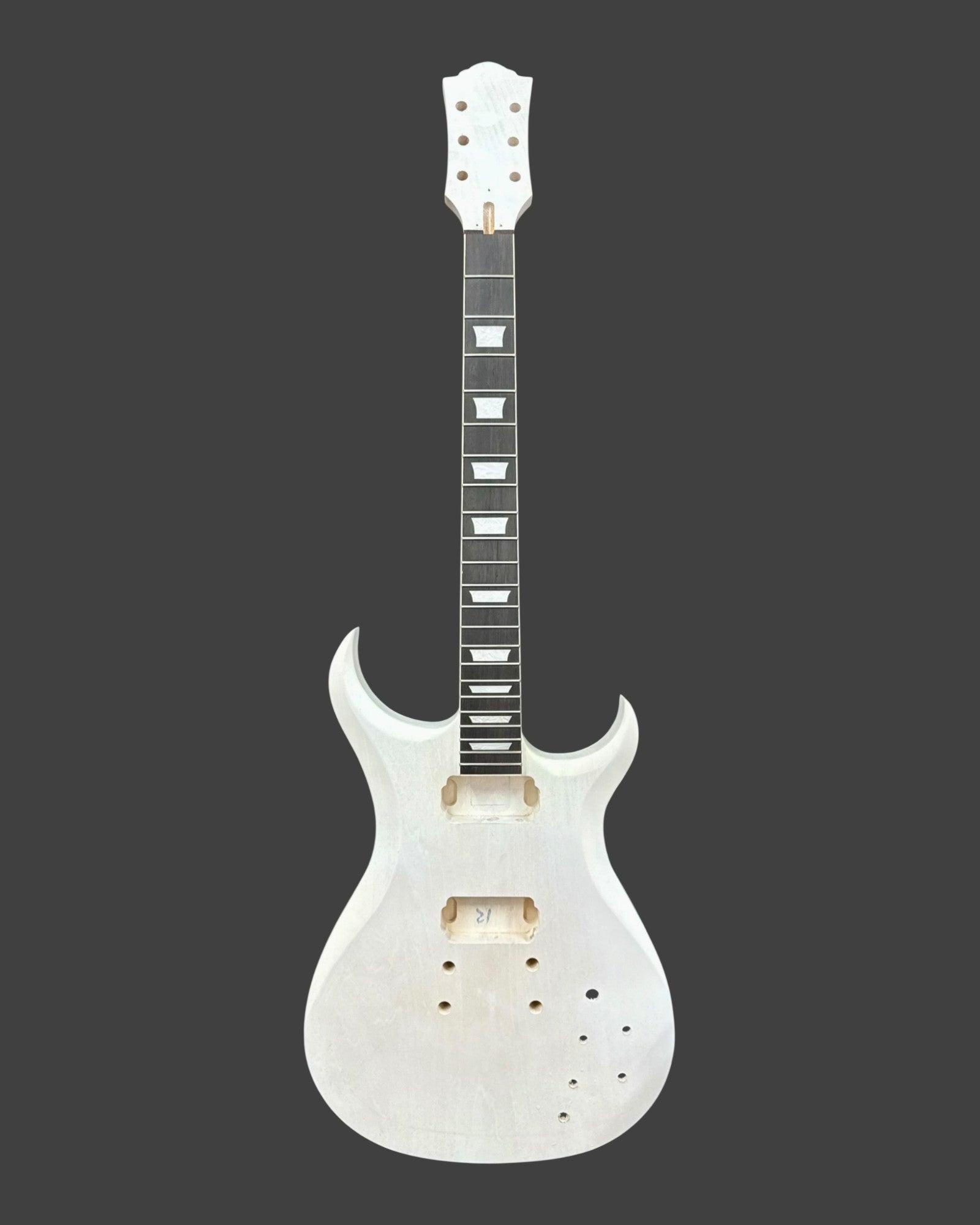

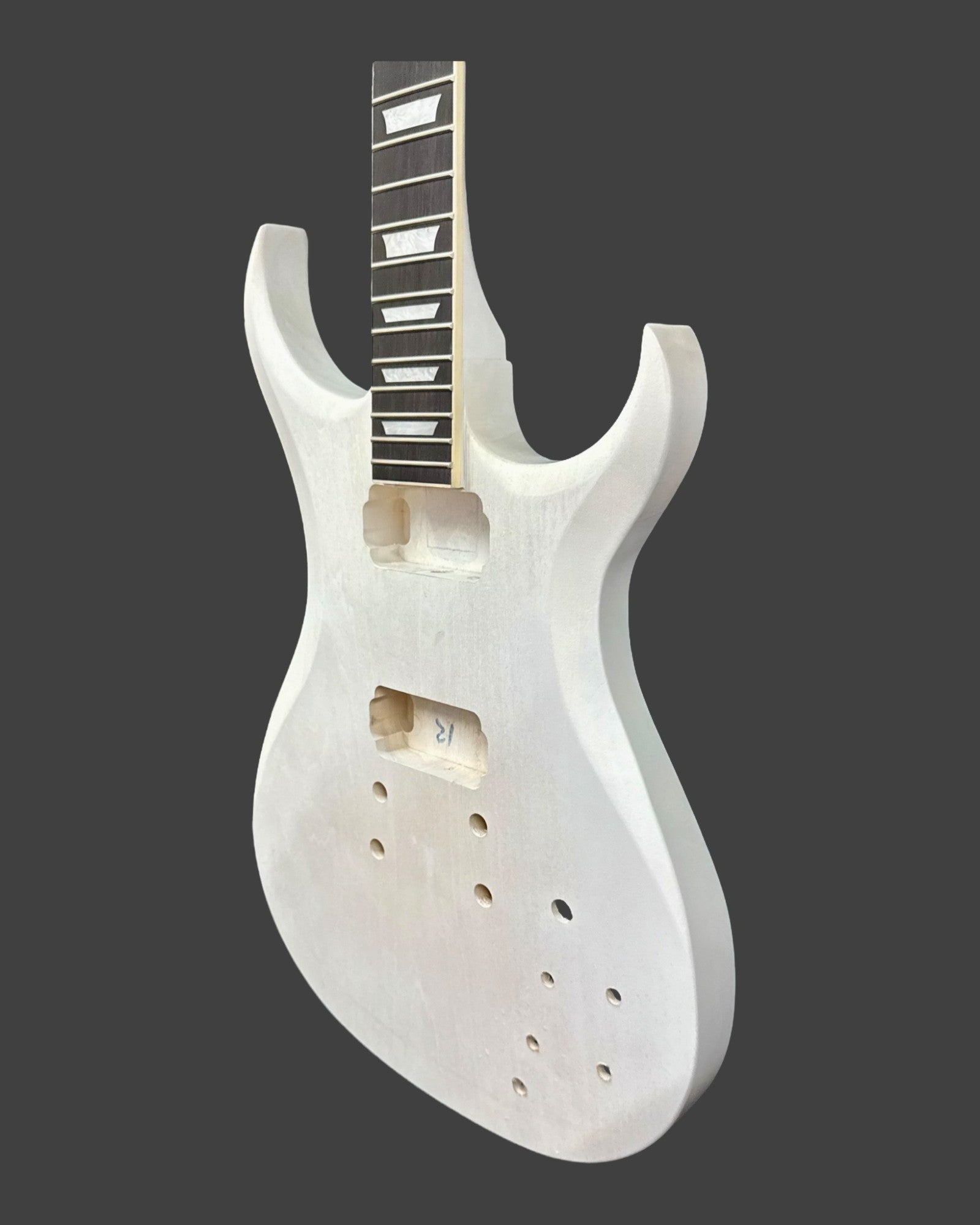

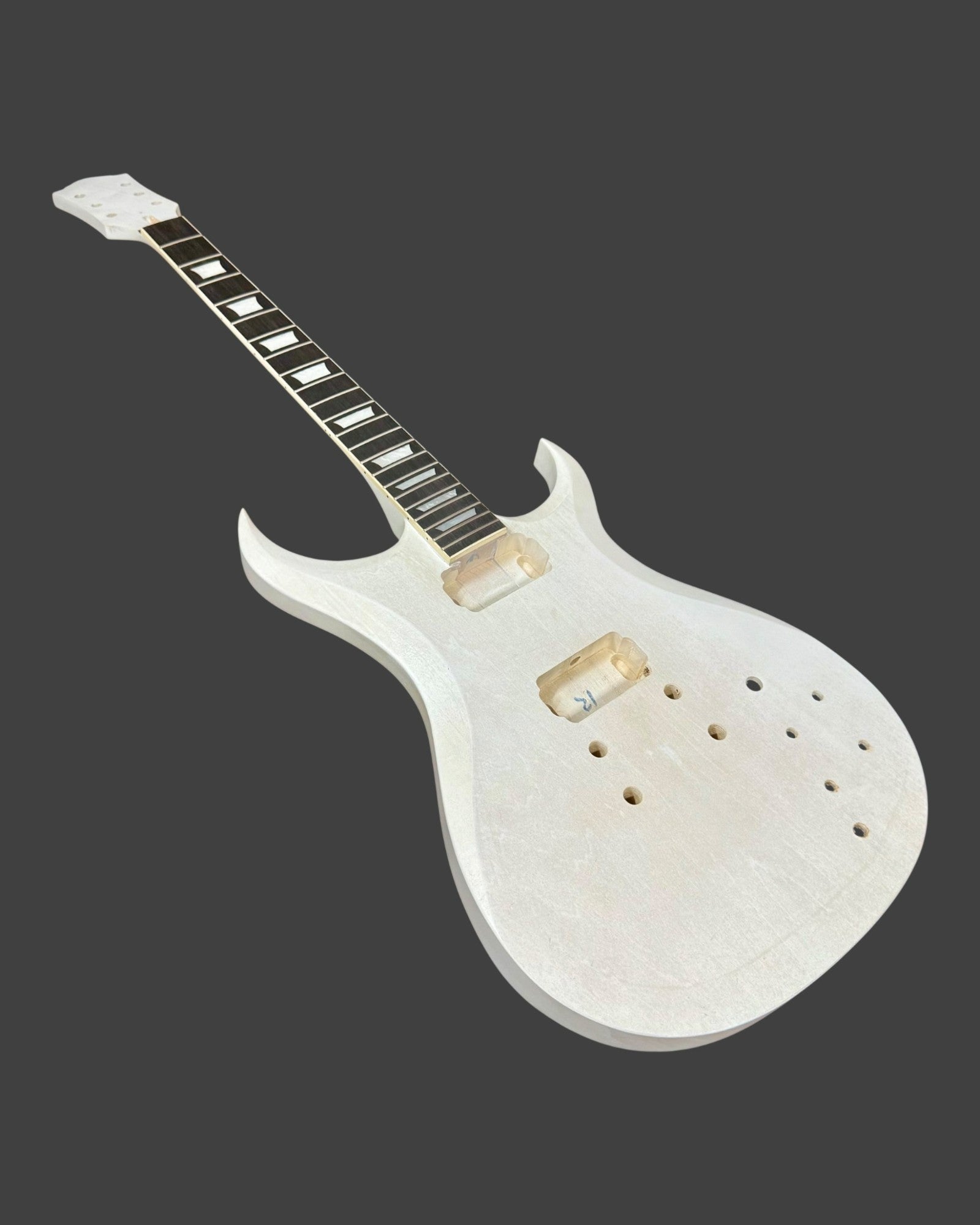

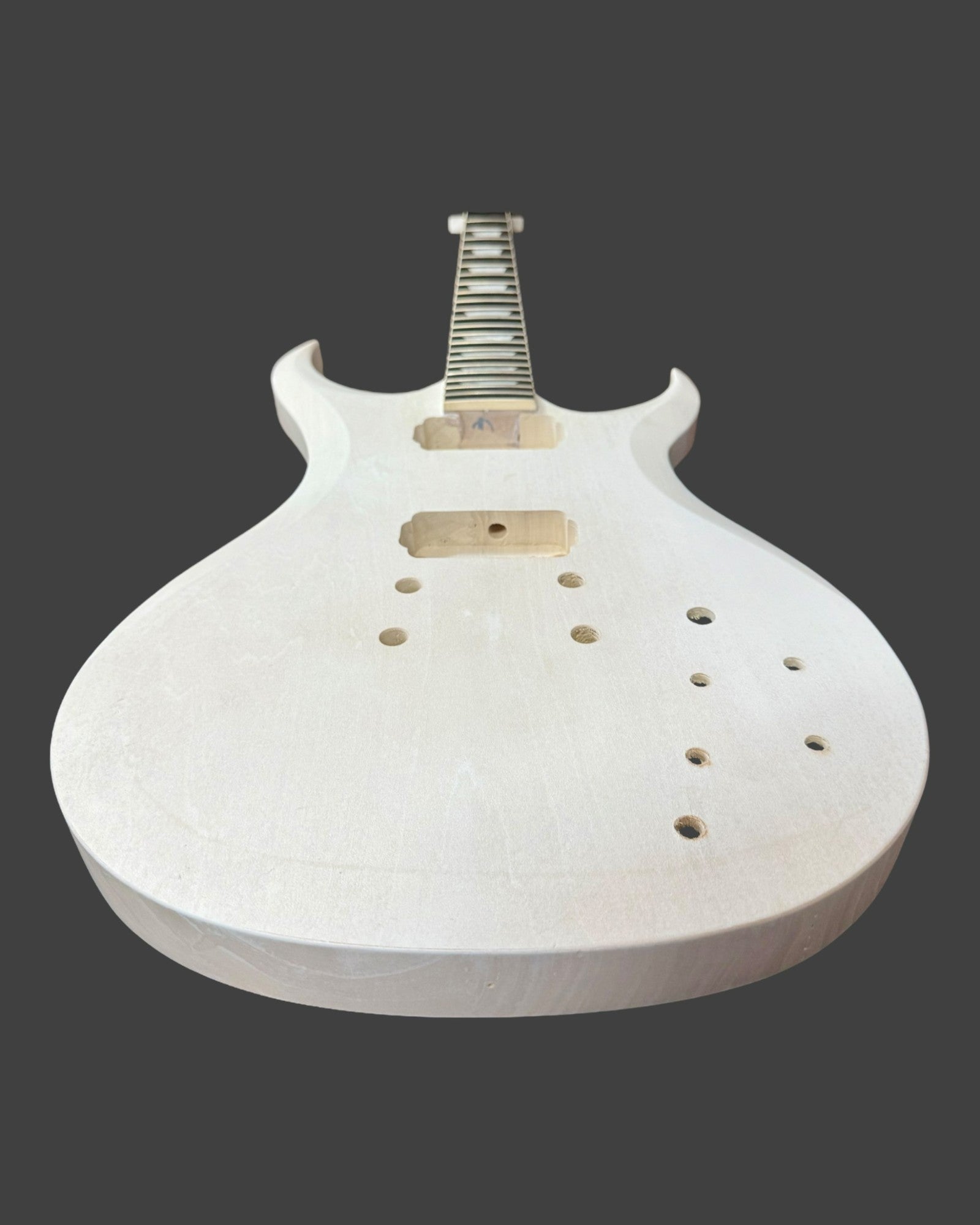

Iconic GS-Inspired Body

• Crafted from Poplar and pre-primed in white, this kit is ready for your custom paint job or final finish. The asymmetrical double cutaway ensures easy upper-fret access and aggressive rock aesthetics.
• Featuring a modern sharp horn design that delivers both striking looks and ergonomic balance—perfect for comfortable playing in any position.

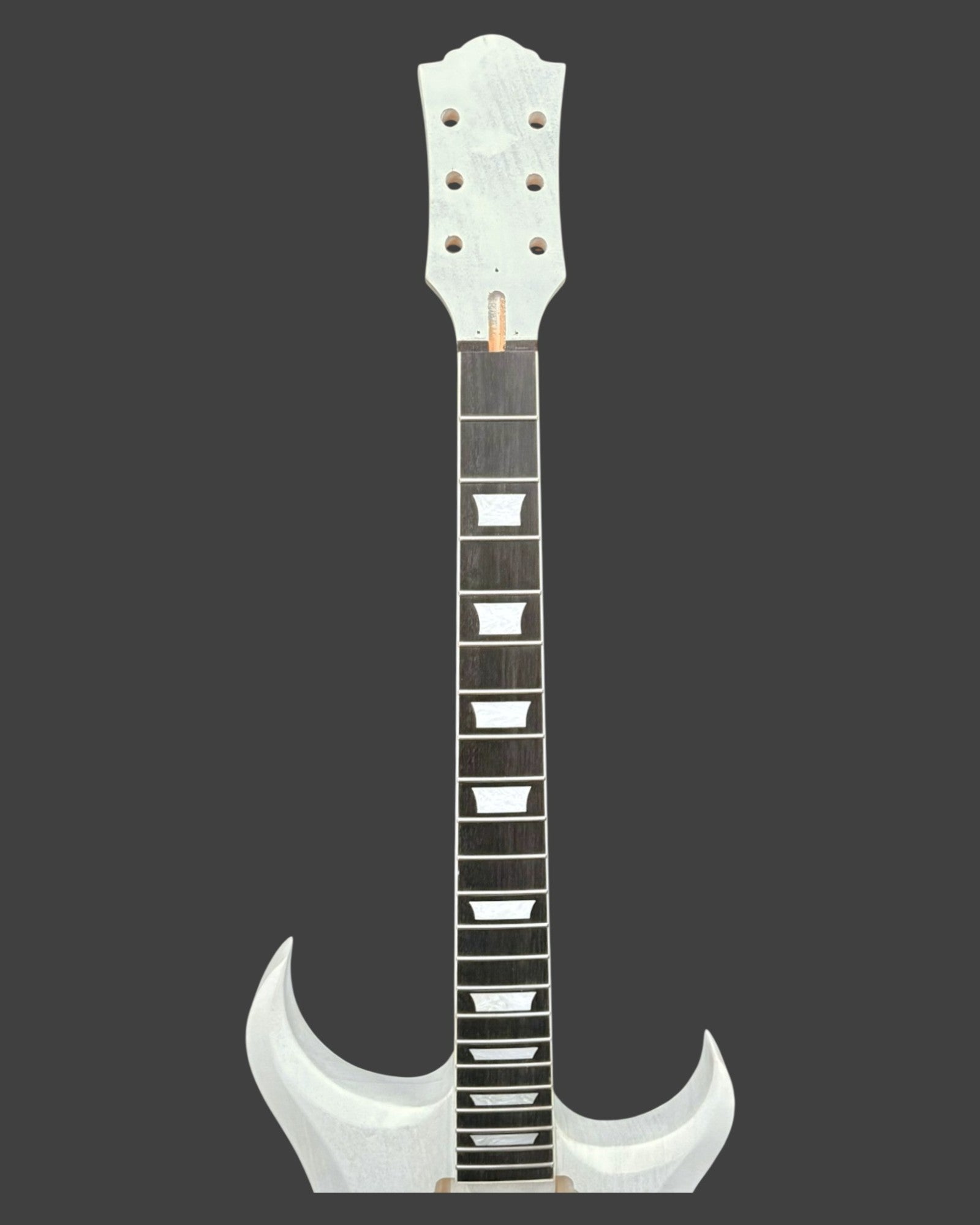

Deluxe Set-Neck Construction

• Features a super thin-C profile maple neck with a set-in joint for superior sustain. The dark rosewood fretboard is adorned with mother-of-pearl trapezoid block inlays, adding a touch of vintage elegance.
• Frets: 22
• Nut: Ivory-colored plastic
• Truss Rod: Preinstalled 2-way adjustable with 3-ply ebony coloured cover
• Strings: Stainless steel, 6-string configuration

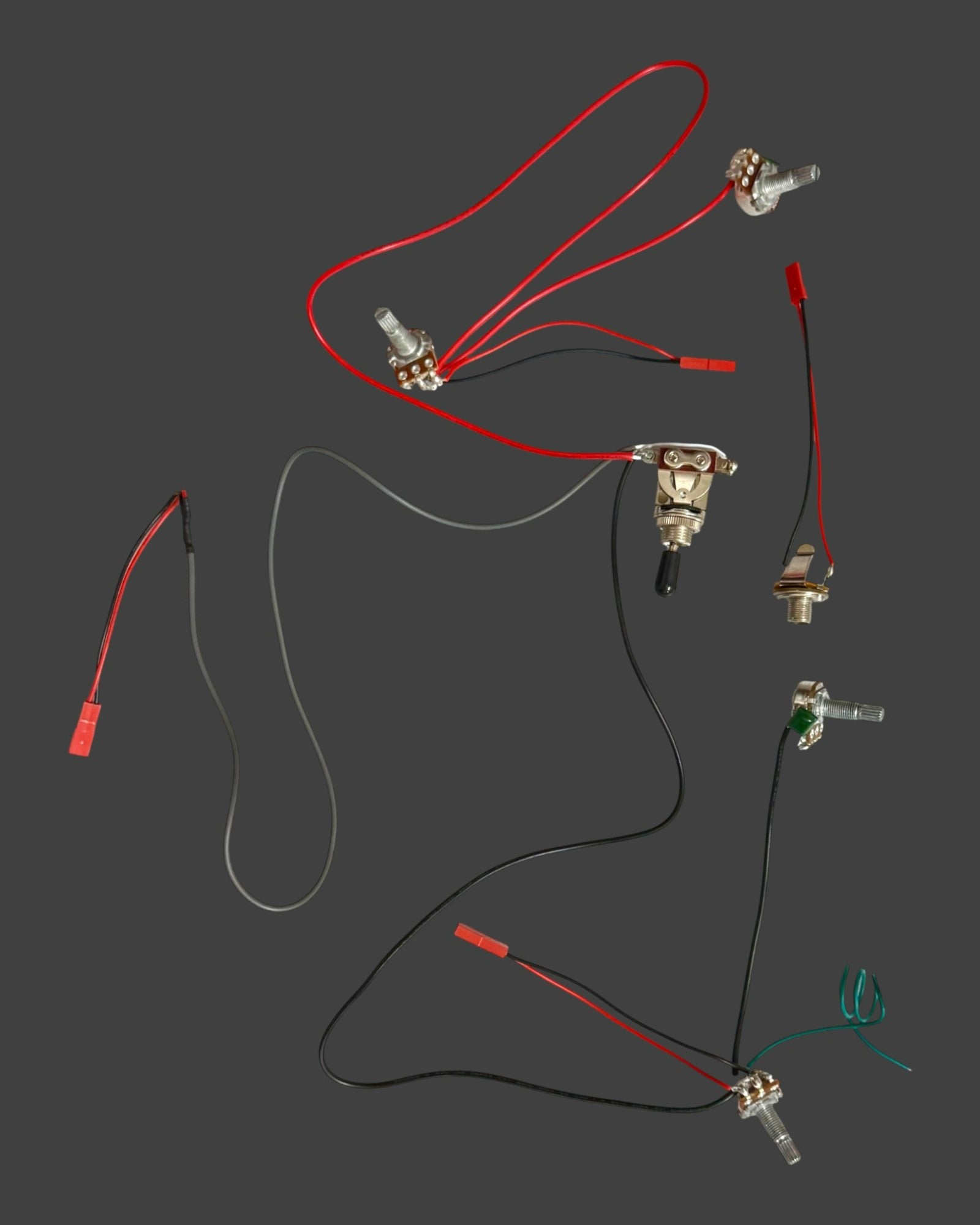

Plug-N-Play Electronics – No Soldering Required

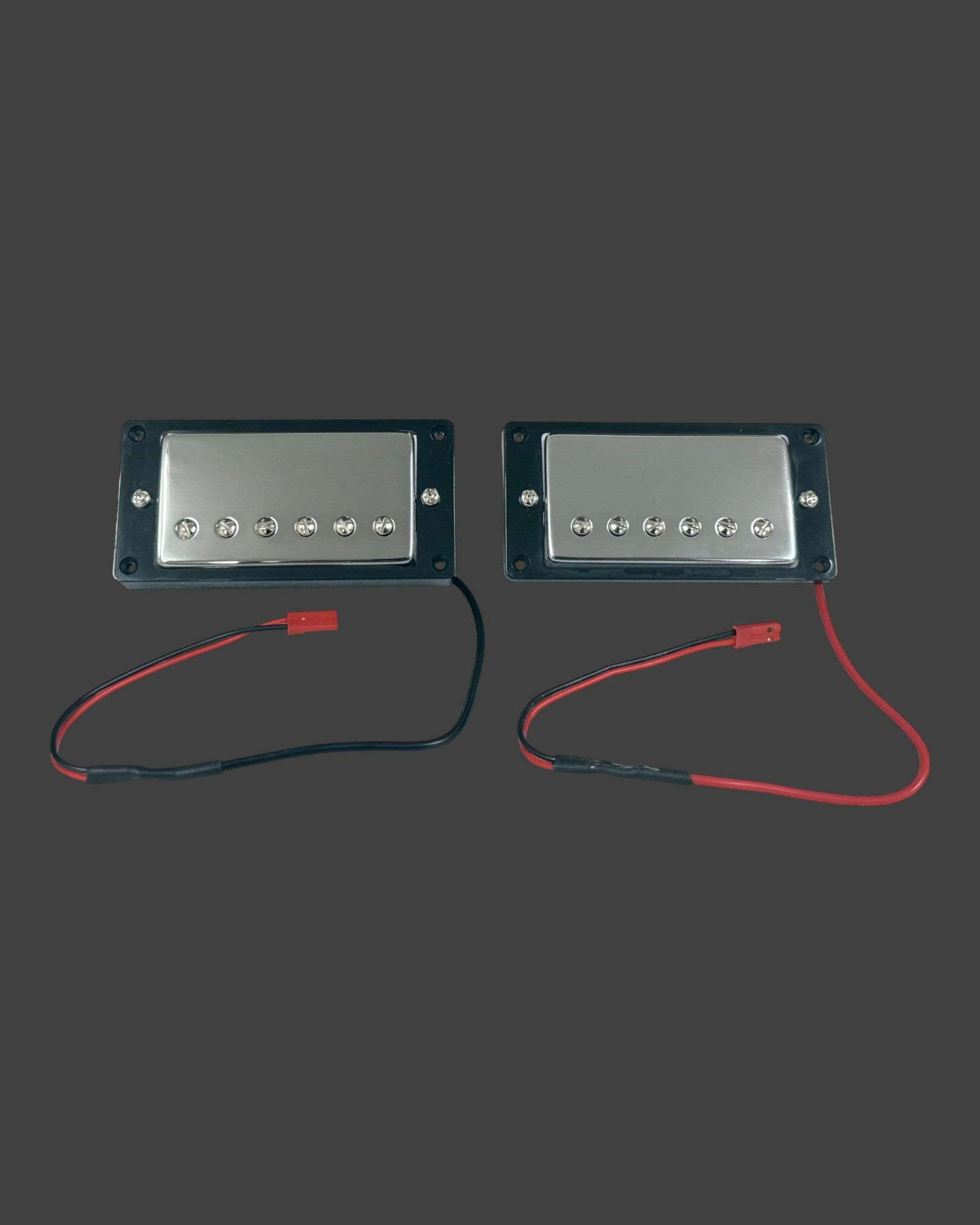

• Pre-wired dual chrome-covered ceramic humbuckers deliver a bold, punchy tone. Simply connect using the included plug-n-play connections—no soldering iron needed.
• Neck Pickup: P-3002-50 (8.5K, 3.5H)
• Bridge Pickup: P-3002-52.5 (8.8K, 3.9H)
• Controls: 2 Volume / 2 Tone with classic silver-black “top hat” knobs.
• Switch: 3-way toggle for versatile tone control.

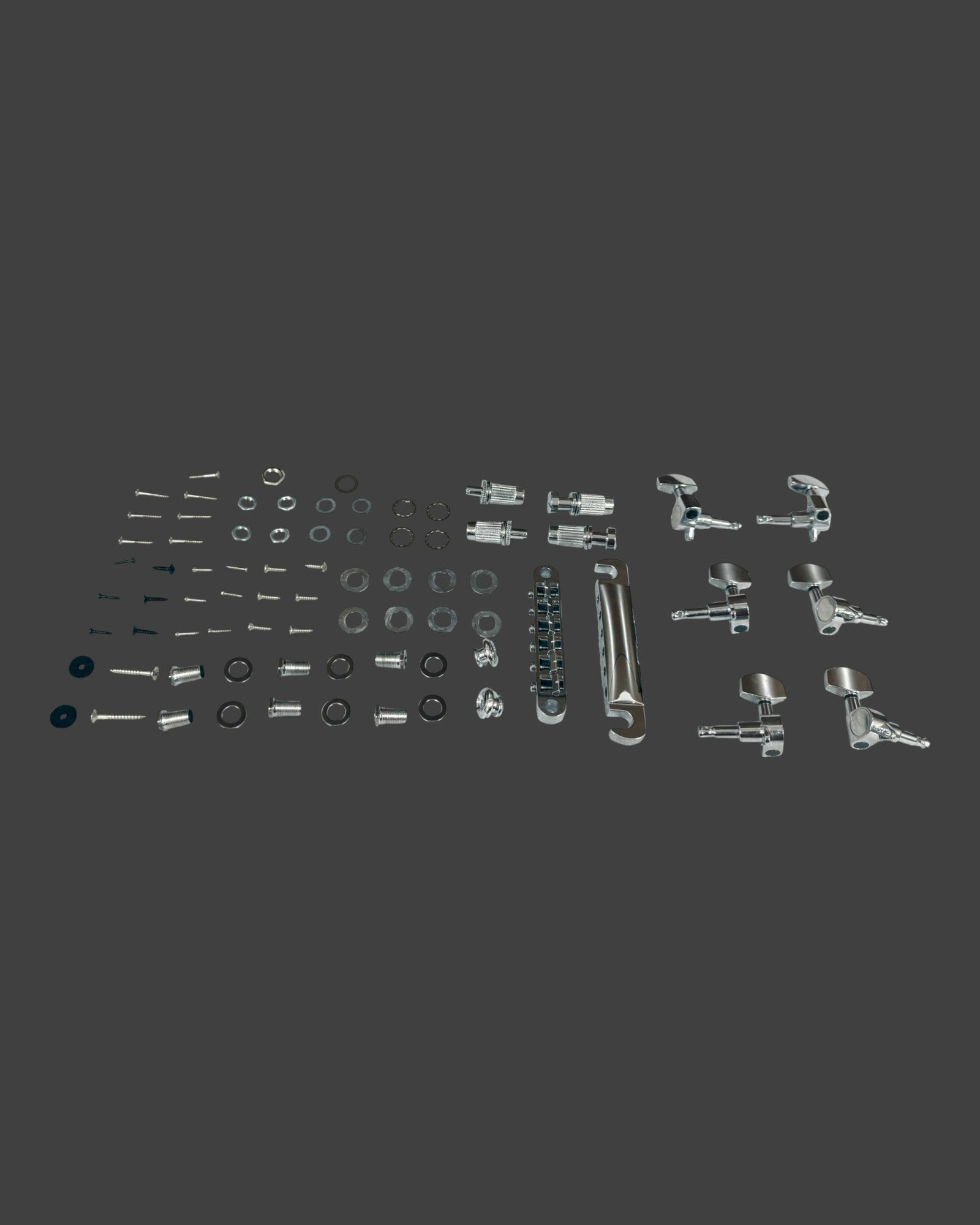

High-Quality Hardware

• Outfitted with chrome-plated hardware, this kit features a Tune-O-Matic bridge paired with a Lock-Tone saddle for enhanced sustain and precise intonation, along with Gotoh-style sealed Rotomatic tuners to ensure stable tuning and smooth, accurate adjustments during play.

Classic Finishing Touches

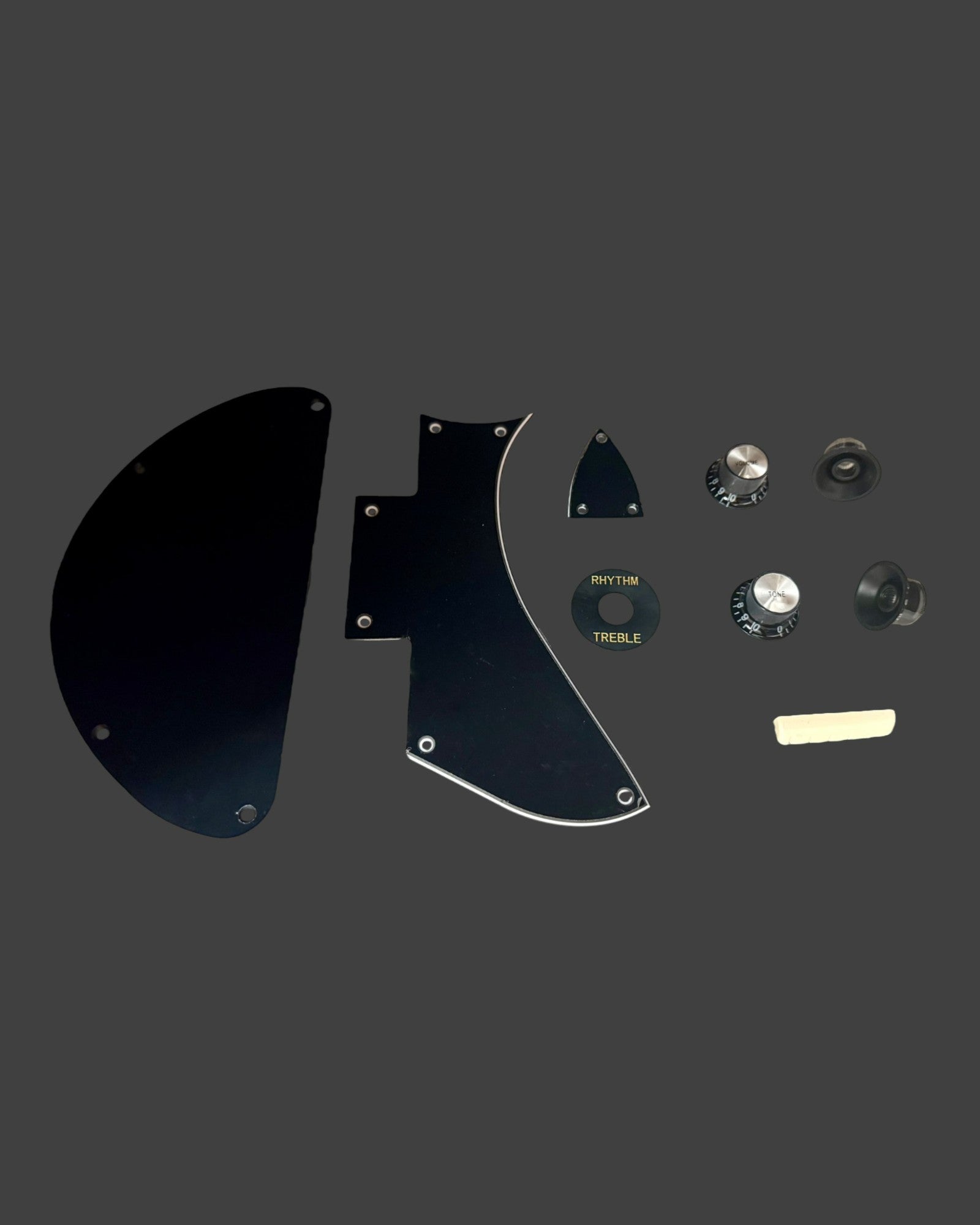

• Vintage-style 3-ply ivory pickguard evokes classic ’63-era design.
• Deluxe ABS vintage cream binding on the neck provides a refined, high-end finish.

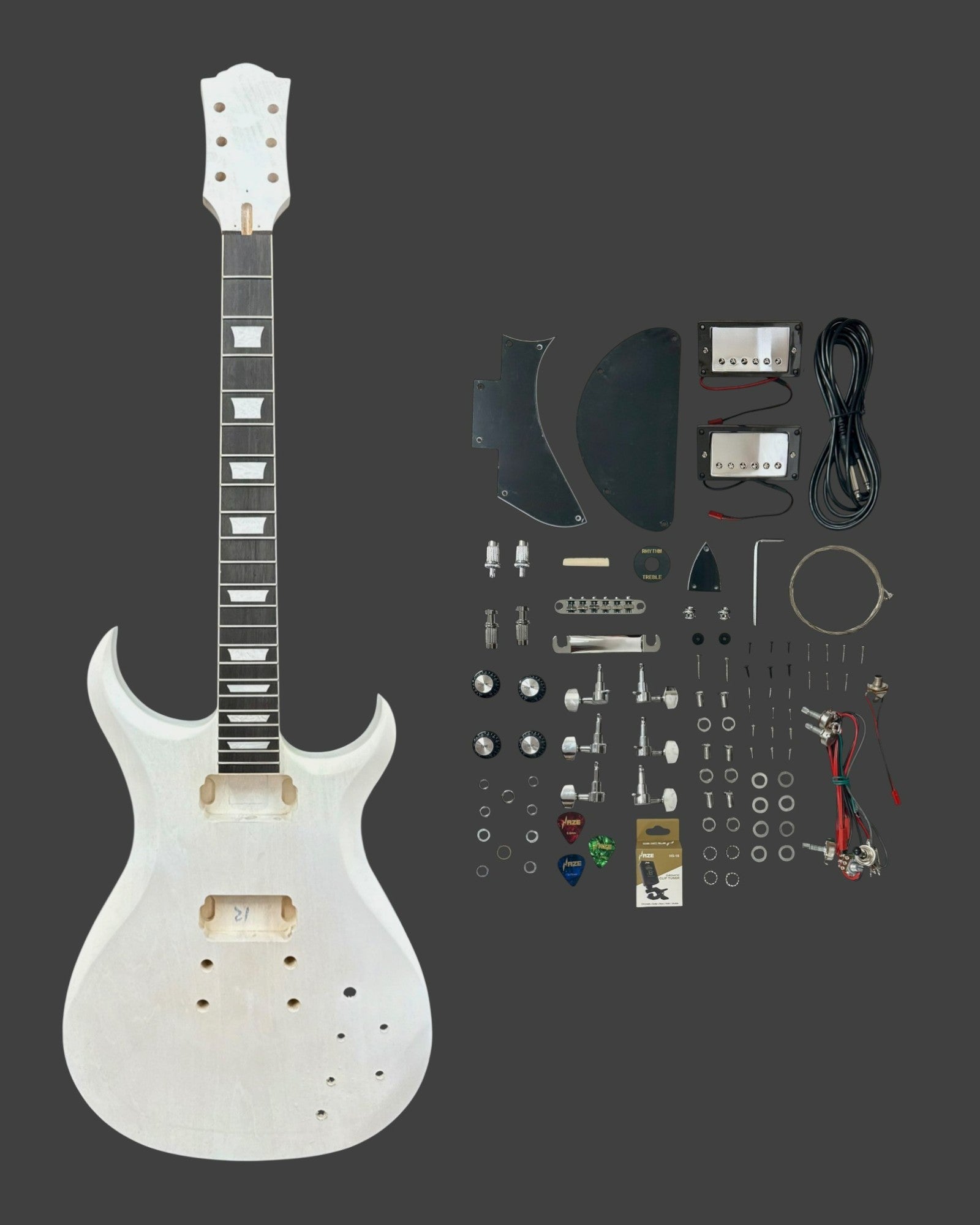

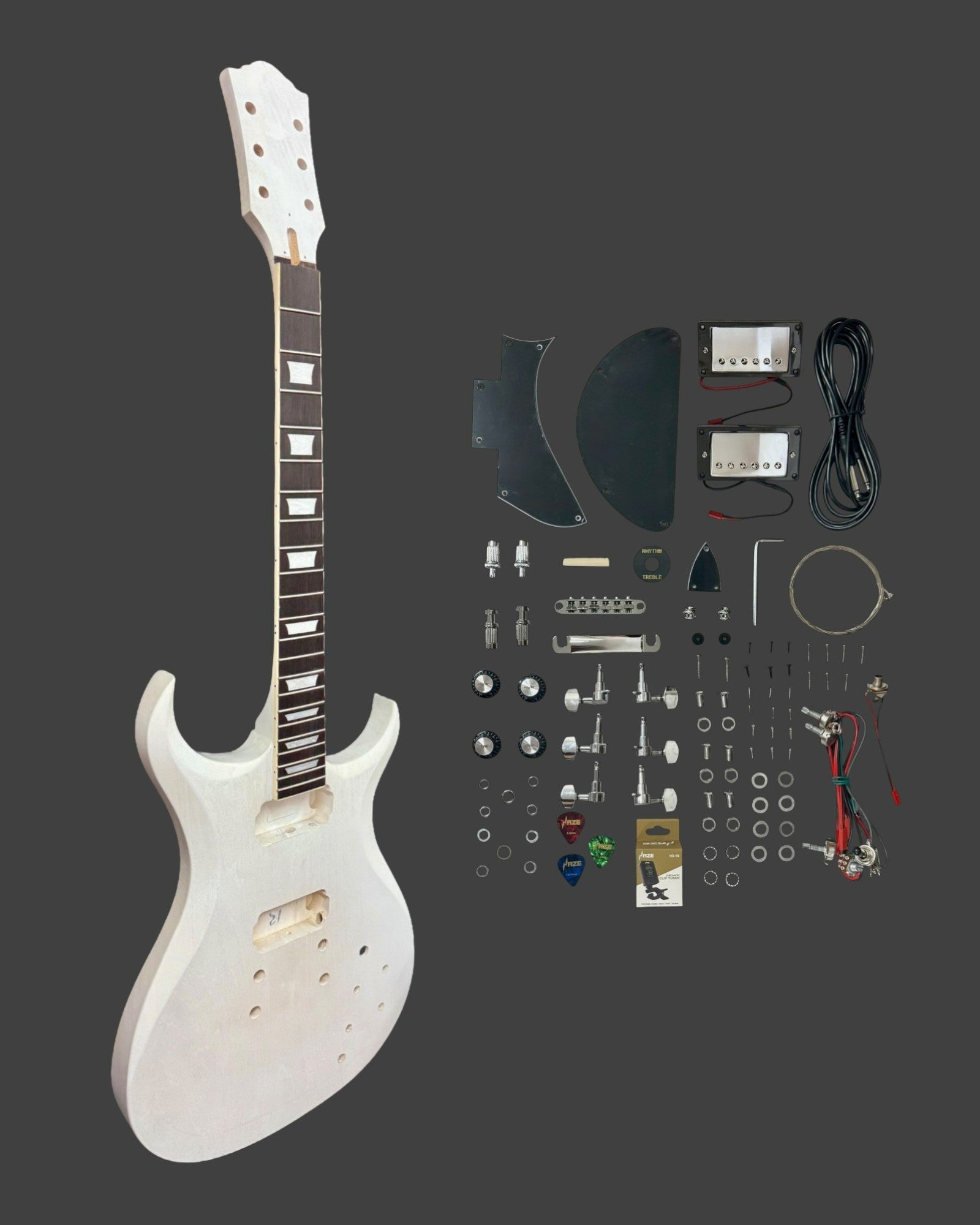

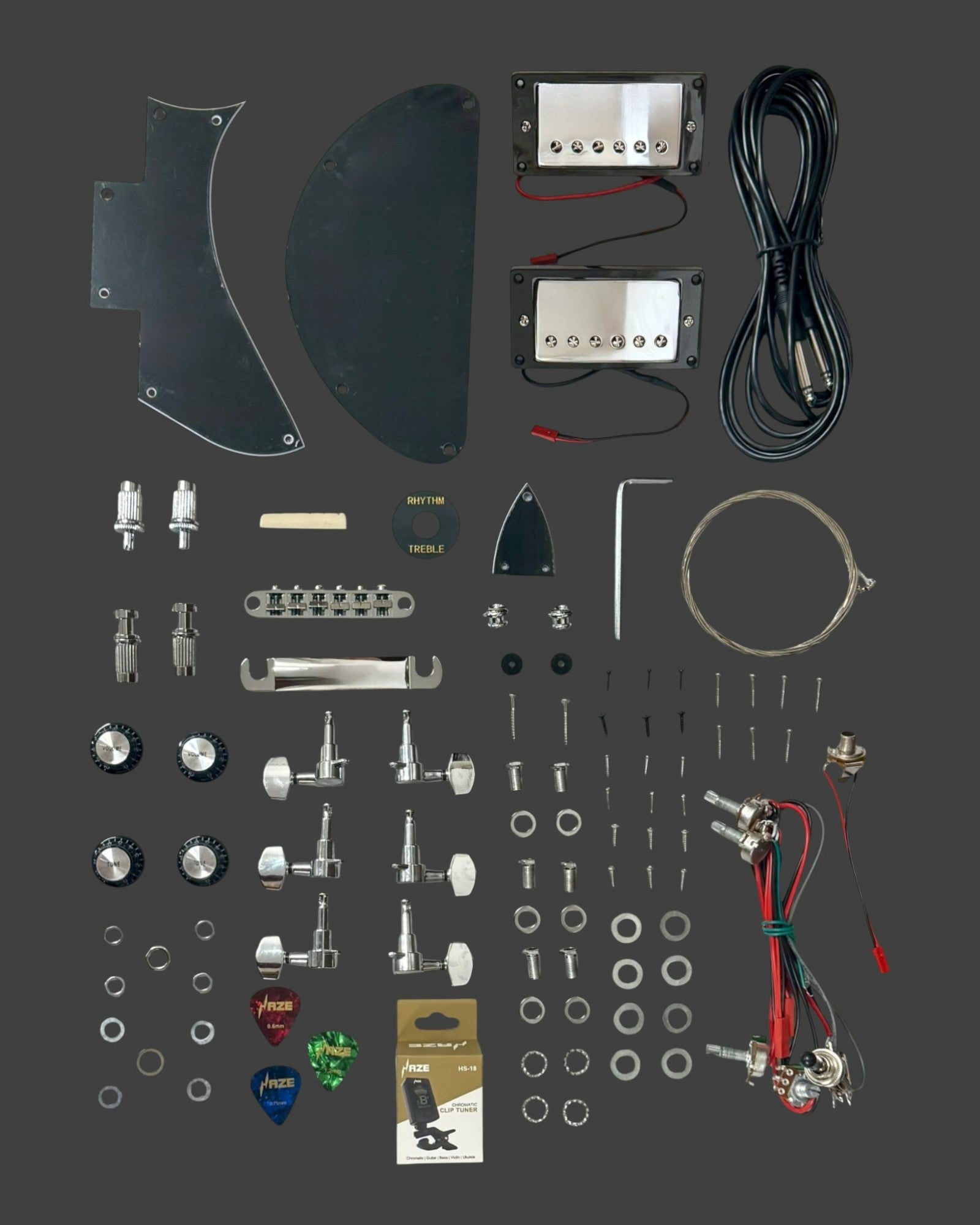

Kit Includes

• 3 Guitar Picks
• Clip-on Digital Tuner
• Instrument Cable
• Truss Rod Adjustment Key

With the E575DIY, you’re not just building a guitar—you’re crafting a personal instrument that reflects your style and creativity. Whether you're into blues, rock, or metal, this guitar kit delivers professional-level components in a DIY-friendly format.

Specifications

• Model Number : E575DIY
• Instrument : Electric Guitar (GS style) (DIY Kit)
• Body : Poplar (HGS)
• Binding : Deluxe ABS vintage cream
• Fretboard : Dark Rosewood w/ Mother-of-Pearl trapezoid block inlays
• Neck : Maple (super thin-c)
• Neck Joint : Set-In
• Number of Frets : 22
• Electronics Connections : Plug-n-Play connectors
• Controls - Knobs  : 2 Volume / 2 Tone (silver-black “top hat” knobs)
• Controls - Switch : 3-Way Toggle Switch
• Pickups : H-H (Humbucker-Humbucker) Ceramic w/ Chrome cover
• Pickups - Neck : P-3002-50 (Ferrites: 8.5K 3.5H / Dimensions: 70.5mm x 38.5mm)
• Pickups - Bridge : P-3002-52.5 (Ferrites: 8.8K 3.9H / Dimensions: 70.5mm x 38.5mm)
• Tuners : Tuners: Gotoh-style Sealed Rotomatic
• Truss Rod : 2-way adjustable w/ ebony coloured cover
• Nut : Plastic (ivory colour)
• Bridge : Tune-O-Matic
• Saddle : Lock-Tone
• Strings : 6 (Stainless Steel)
• Hardware : Chrome
• Pickguard/Trims : 3-ply ’63 vintage-style (ebony colour)
• Finish : White Primed
• Includes : 3 Picks, Clip-on Tuner, Instrument Cable, & Truss Rod Key

Dimensions

• Length : 990mm (excluding endpin)
• Scale Length : 628mm
• Weight - Body/Neck : 2.05kg
• Weight - Electronics/Hardware : 0.95kg

Body

• Length : 410mm
• Width - Upper Bout : 280mm
• Width - Inner Body : 205mm
• Width - Lower Bout : 330mm
• Depth : 36mm (includes top, measured on side)

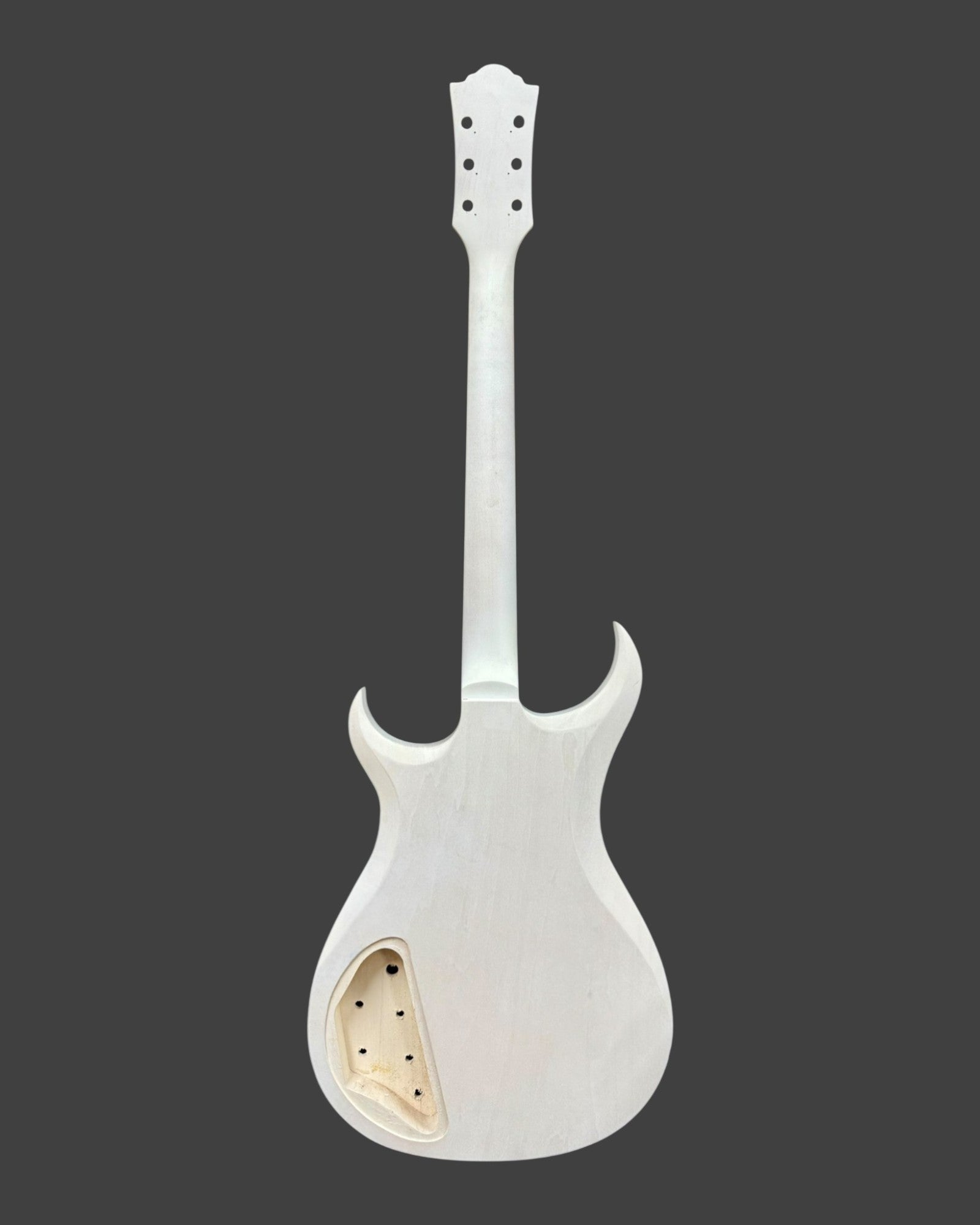

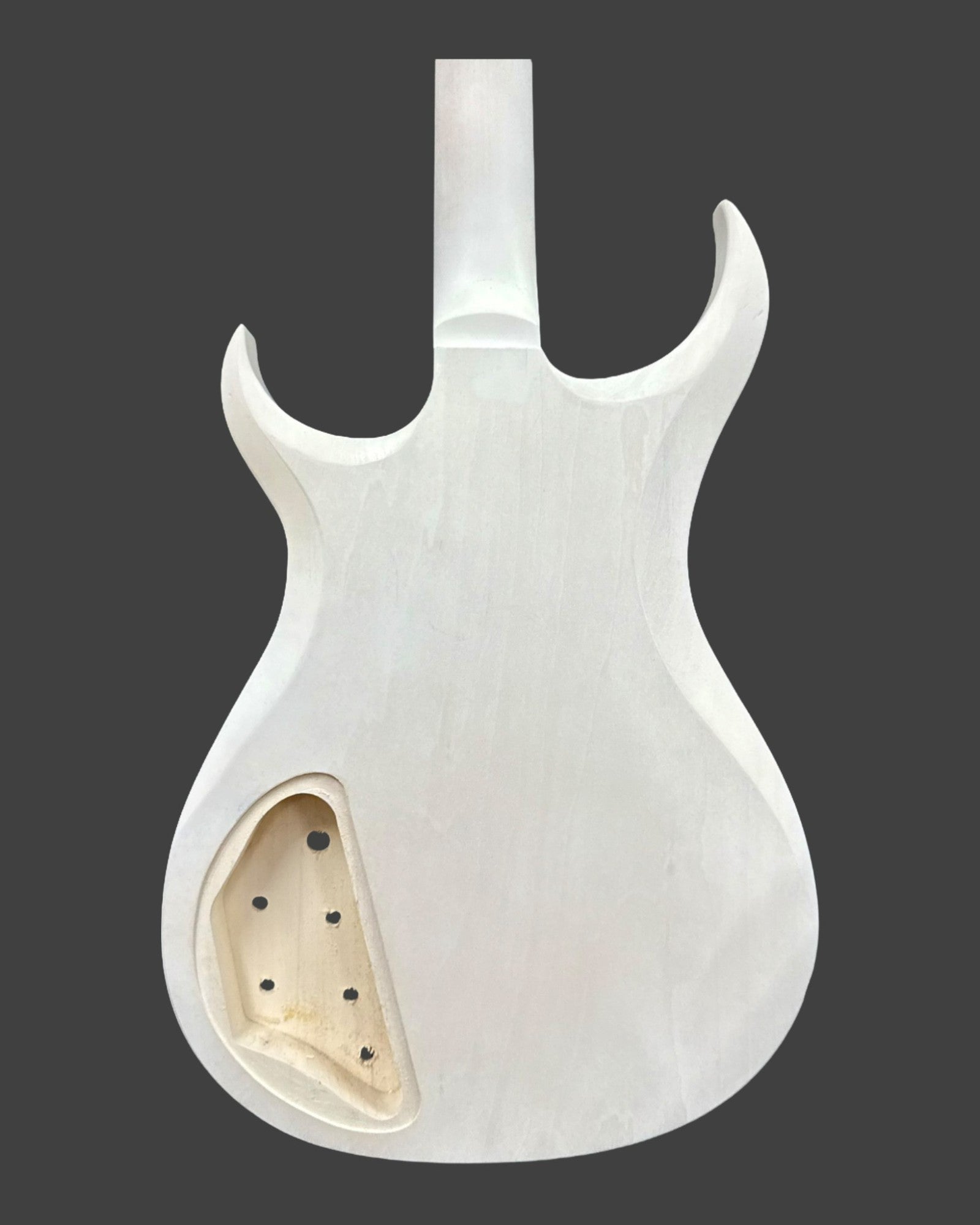

Body Compartments

• Length - Pickups : 43mm
• Width - Pickups : 88mm
• Control Knobs - Back : 170mm x 75mm
• Line Out : 10mm
• Controls : 8mm
• Switch : 12mm
• Bridge & Saddle : 12mm
• Distance - Pickup Compartments: 62mm
• Distance - Bridge Holes : 62mm
• Distance - Saddle Holes : 70mm

Neck

• Length : 642mm
• Length - Fretboard : 462mm
• Thickness : 22mm
• Thickness - Fretboard : 5mm
• Radius : 12 (Straight)
• Width - Nut : 42mm
• Width - 12th Fret : 52mm

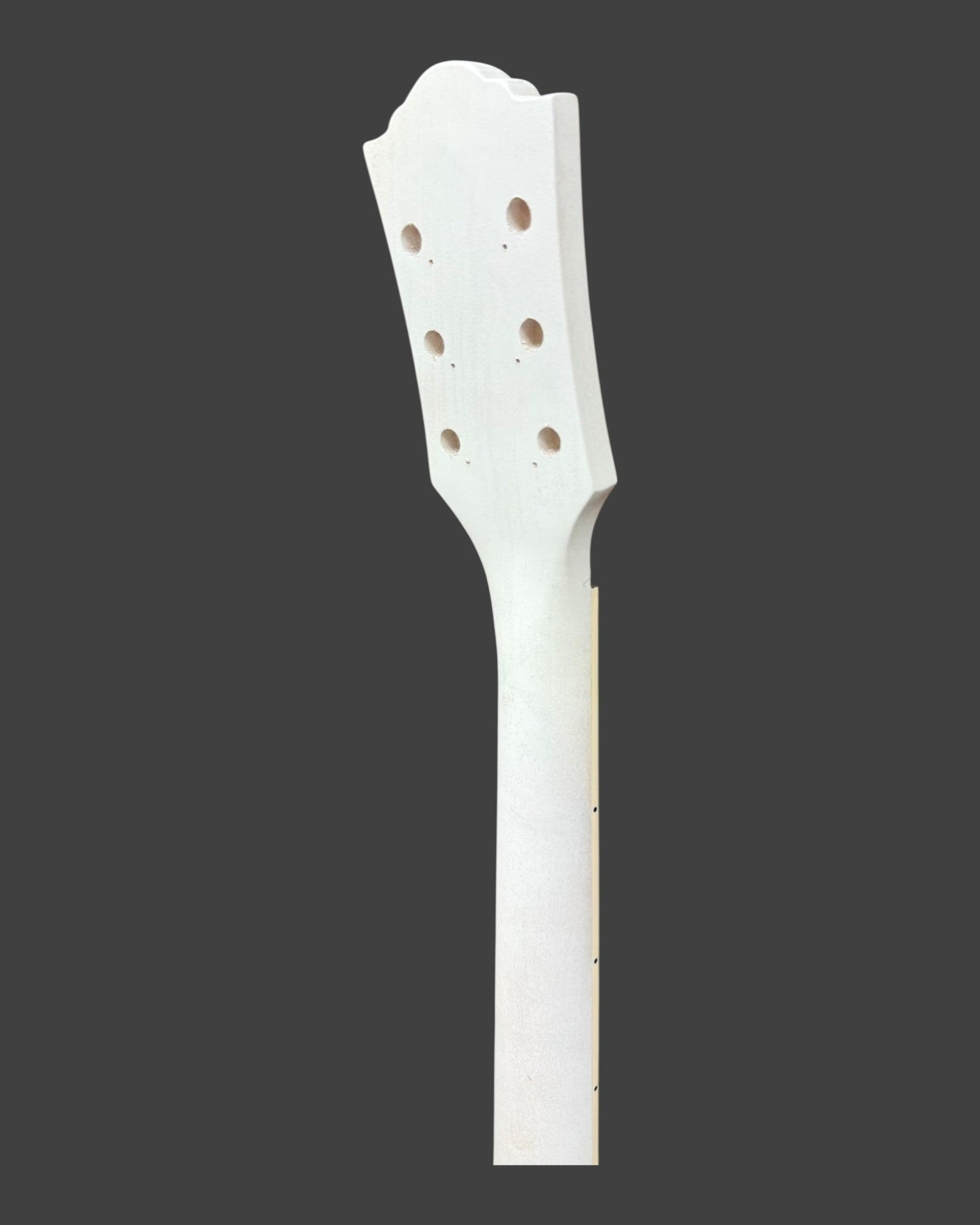

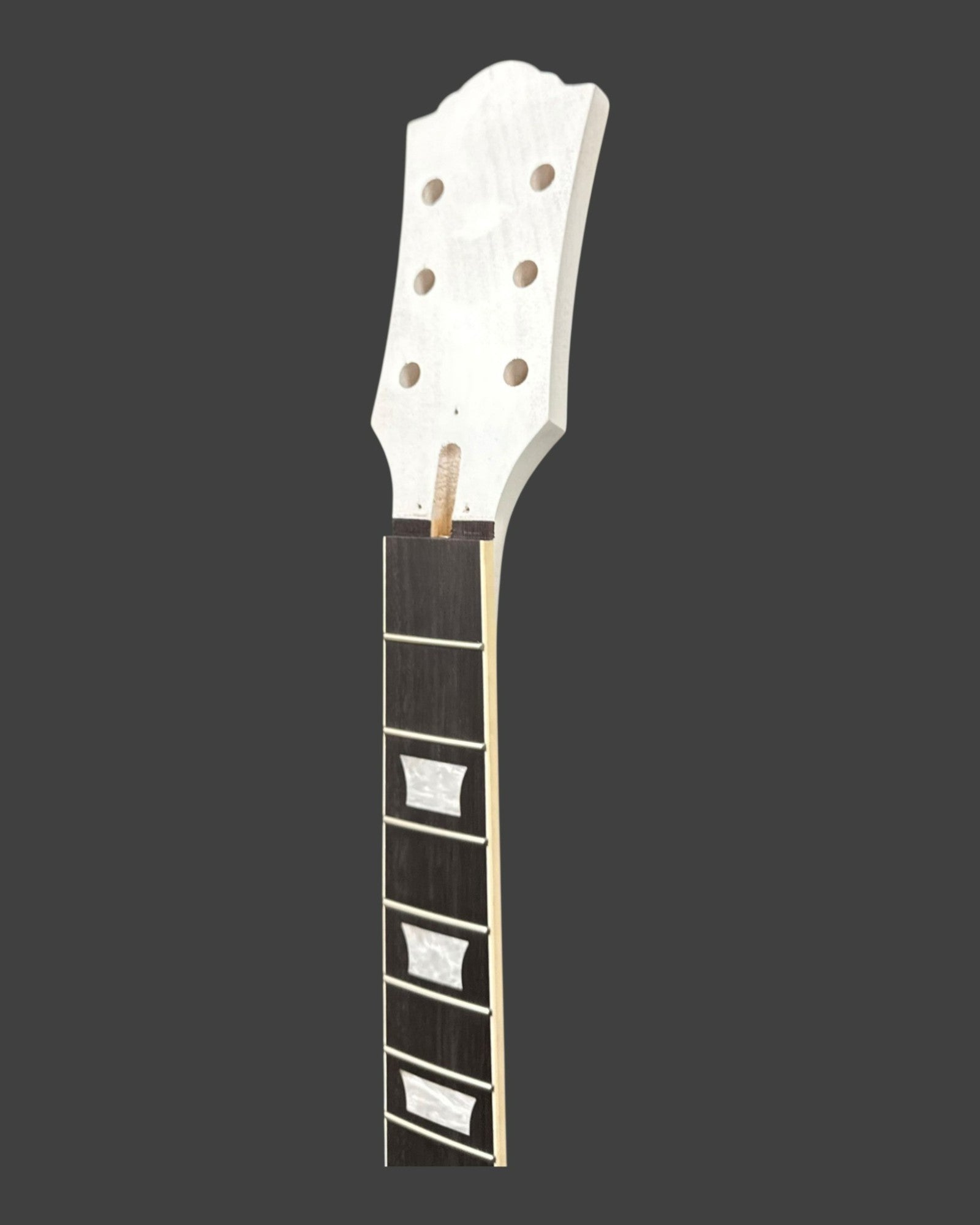

Headstock

• Length: 177mm
• Width - Upper: 79mm
• Width - Inner: 68mm
• Width - Lower : 75mm
• Thickness : 14mm
• Tuner Holes : 10mm

Nut

• Length : 43mm
• Width : 8mm
• Height : 6mm

Note: All product measurements are taken by hand and may vary slightly. Please allow for minor differences in size and dimensions.

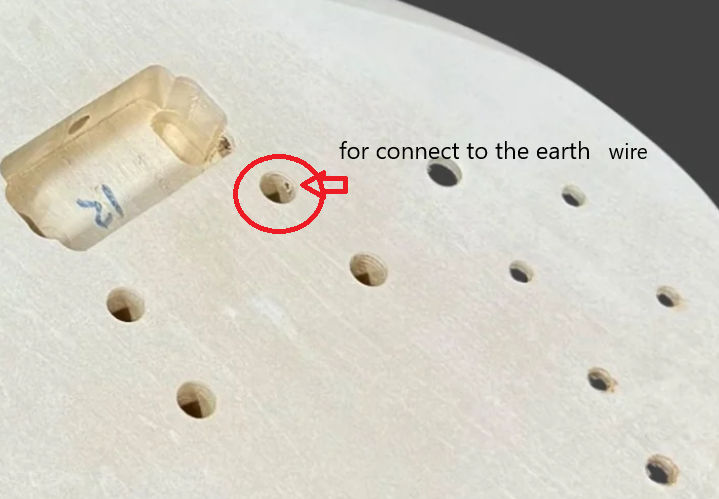

Bridge Ground Wire Hole

This small hole inside the larger bridge-post hole is for the earth (ground) wire connection.

Steps:

1. Locate the small drilled hole inside the larger bridge-post hole.

2. Feed the earth (ground) wire through the small hole from the control cavity side.

3. Pull the wire through until enough length remains to make firm contact under the bridge post or metal hardware.

4. Make sure the exposed end of the wire sits securely against the metal part when the bridge hardware is installed.

5. Check that the wire is tight and properly positioned to ensure good grounding and reduce unwanted electrical noise.

Diagram wording:
A. Bridge-post hole
B. Ground wire hole
C. Earth wire to control cavity
D. Wire contact point under bridge hardware

-
