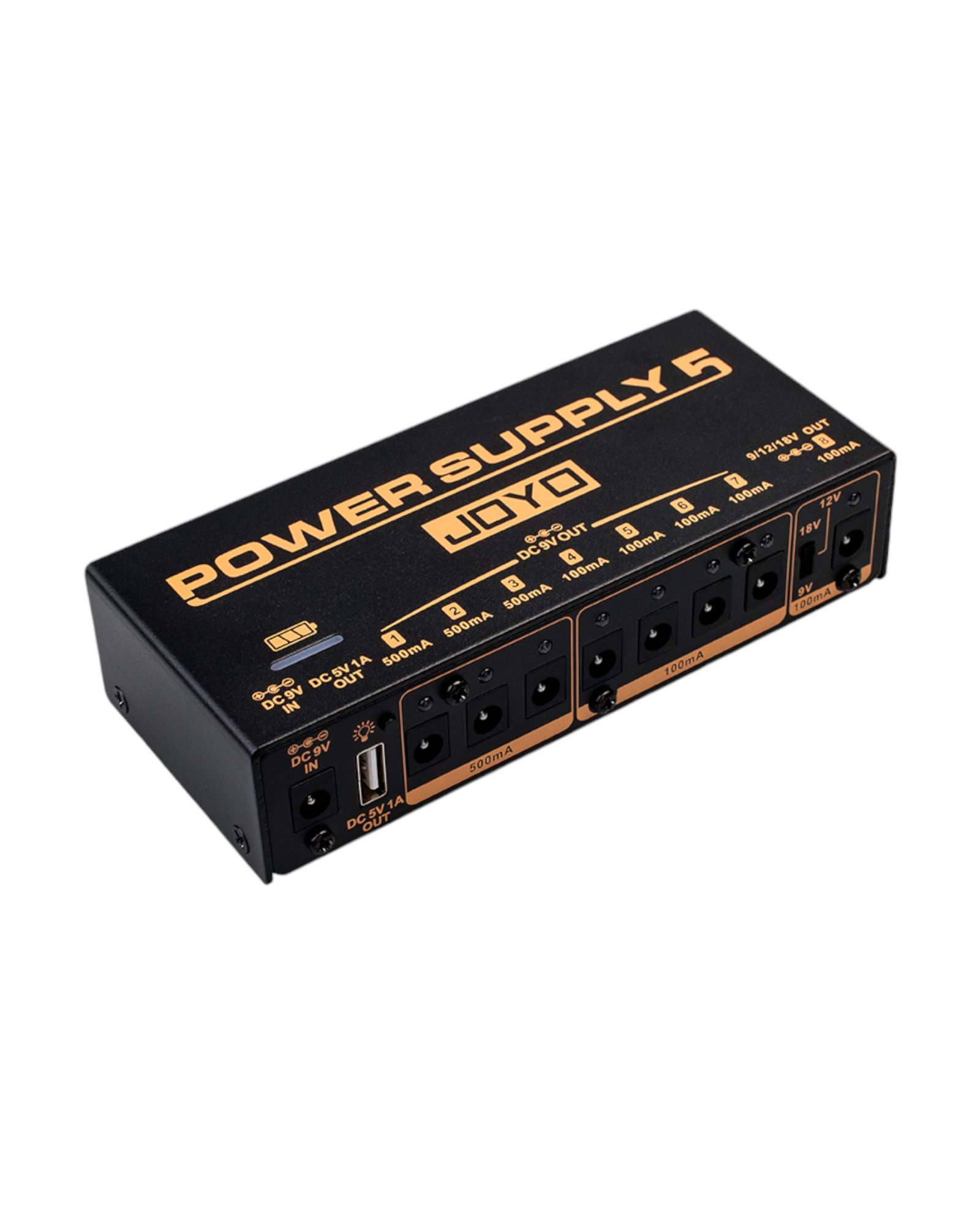

The JOYO JP-05 Power Supply is designed to meet the needs of musicians with its 8 DC outputs and 1 standard USB output. One of the DC outputs is switchable between 9V, 12V, and 18V, providing the flexibility to power your unique pedal collection. The 5V USB output allows you to charge your smartphone and other portable devices, making it a versatile addition to your setup.

Features

Built-in 7.4V/4400mAh Rechargeable Lithium Battery Pack: Provides up to 2 hours of power for high current digital pedals and over 10 hours for 8 analogue pedals. Charging time is approximately 2.5 hours.

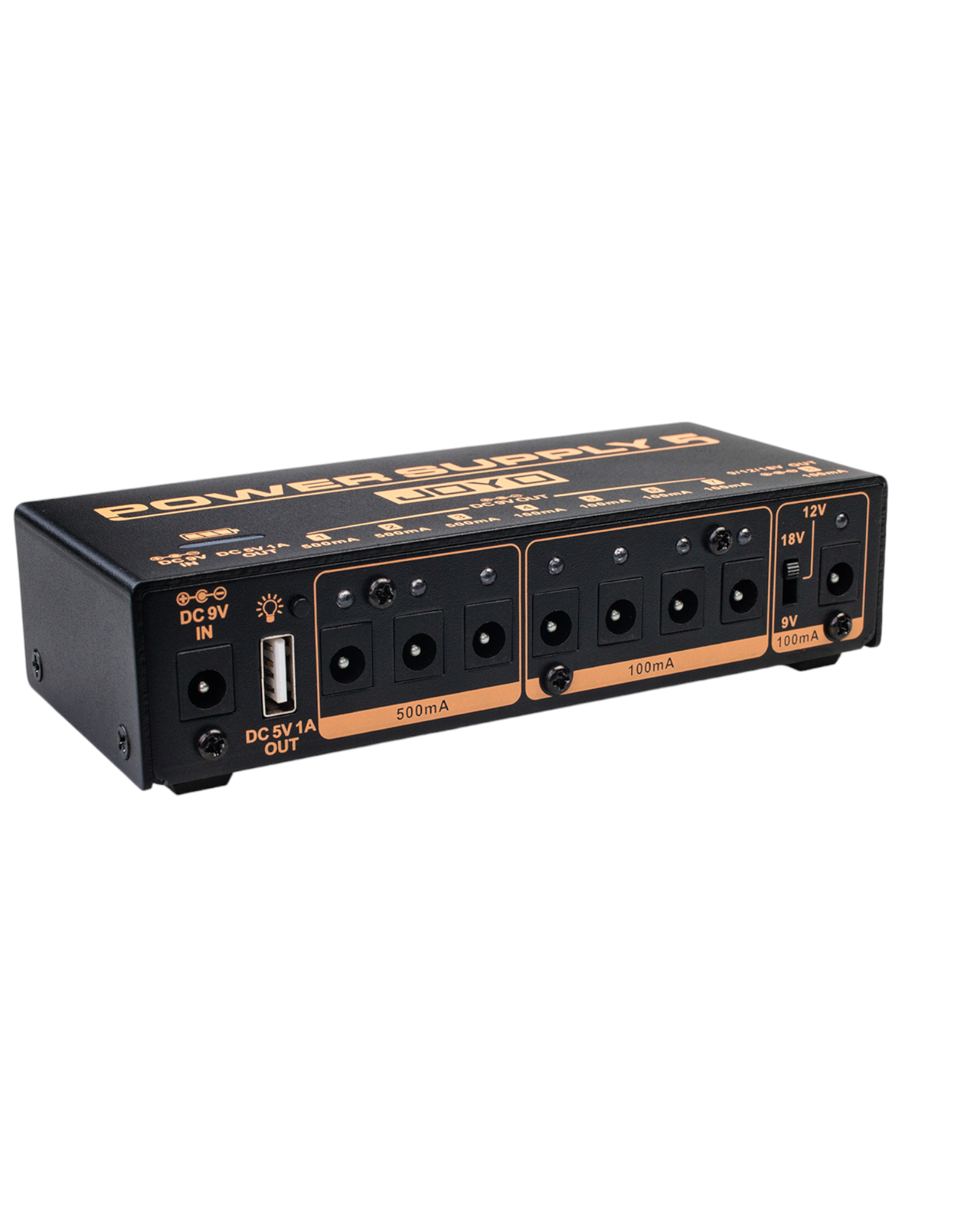

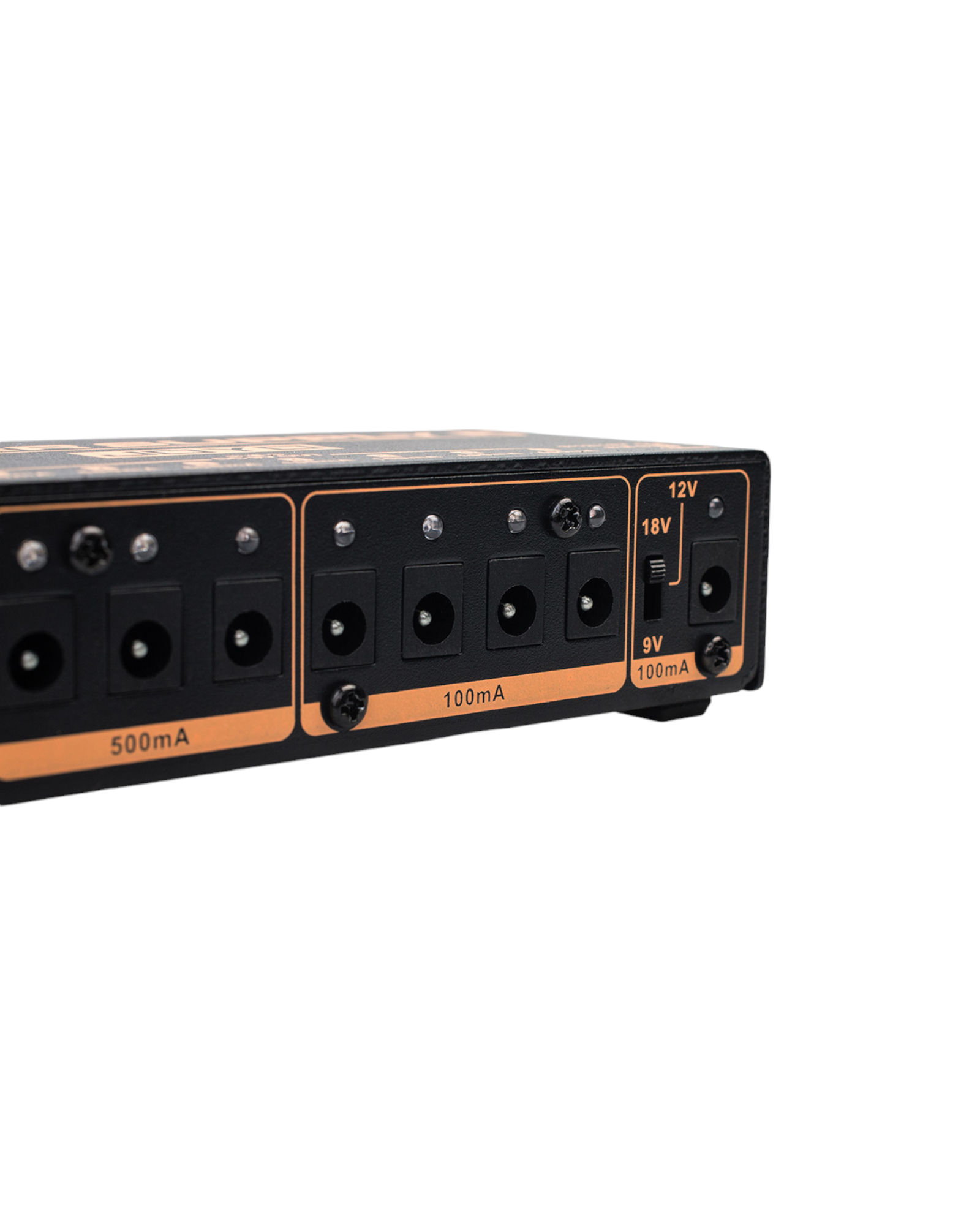

8 DC Outputs: Includes 4 DC 9V 100mA outputs, 3 DC 9V 500mA outputs, and 1 adjustable output (9V/12V/18V, 100mA max).

5V USB Output Port: Compatible with charging cell phones, tablets, and other portable devices.

Battery Level Indicator: Stops charging automatically when fully charged, with LED indicators showing battery level (Red flashing for 0%, Red for 0-30%, Yellow for 30-60%, and Green for 60-100%).

Isolated Low Noise Outputs: Ensures minimal signal interference and maintains sound quality.

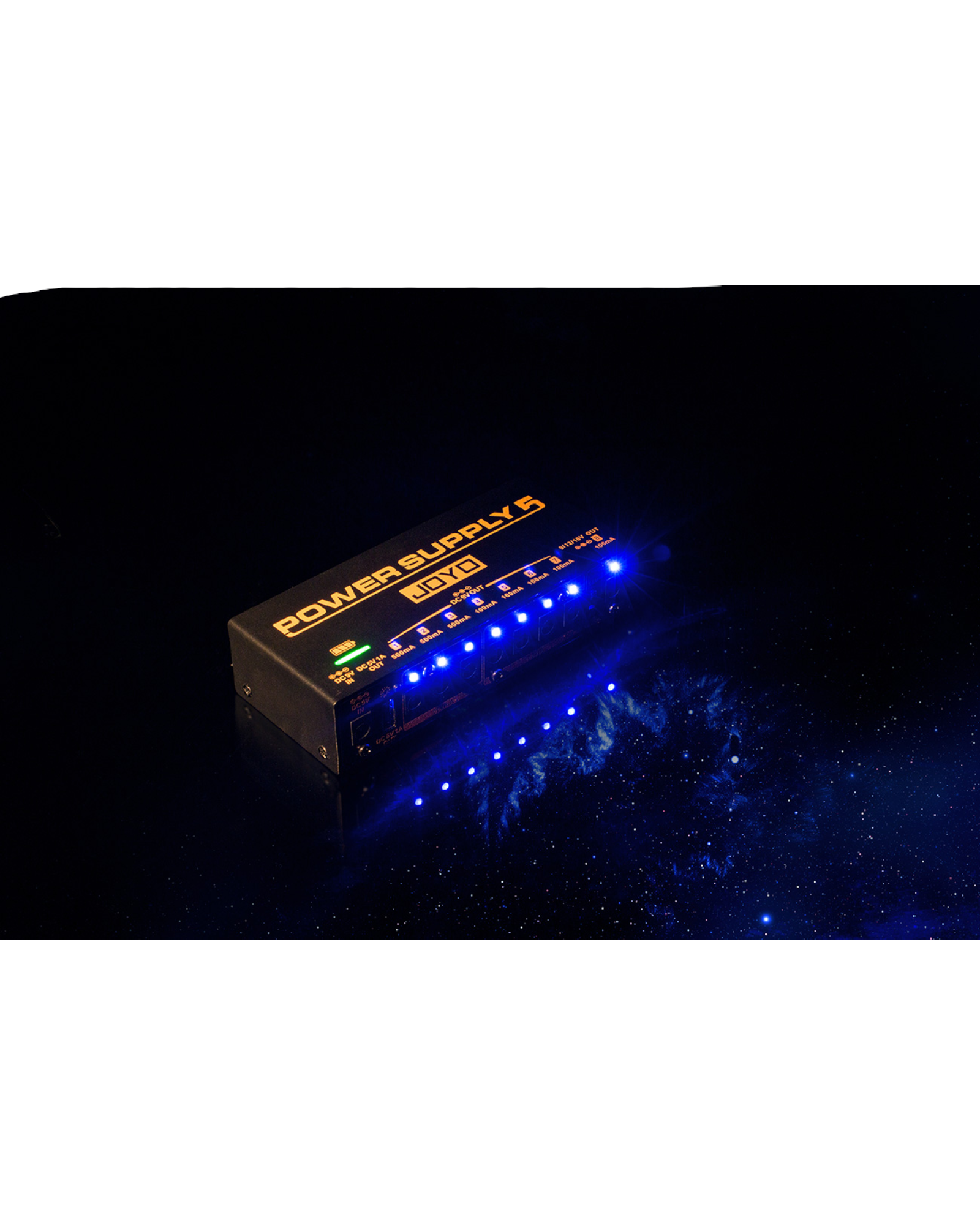

Bright Blue LED Channel Lights: Provides a clear view of channel status with an option to turn the lights on and off.

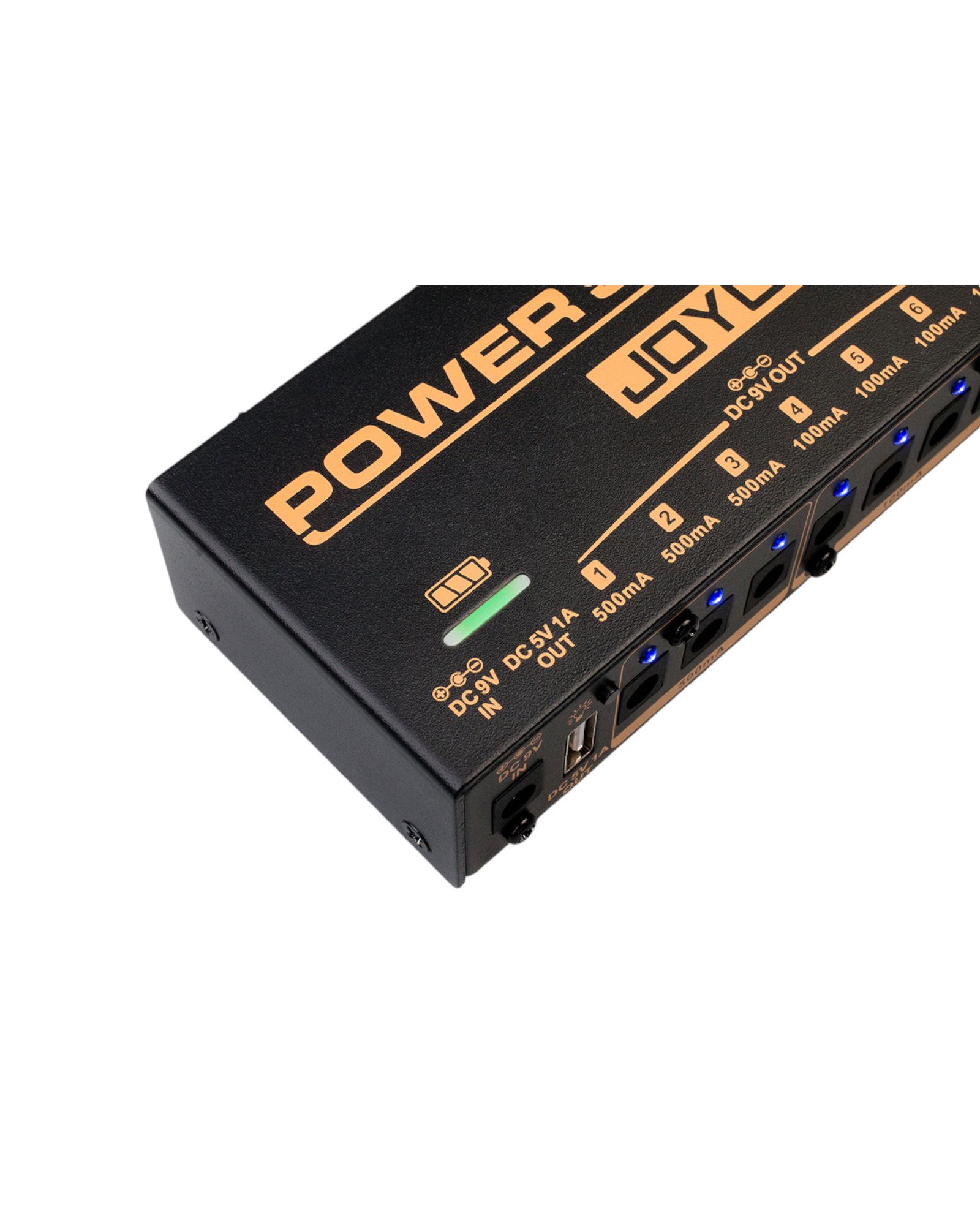

Top-Facing Battery Level Indicator: Easily check the power status at a glance.

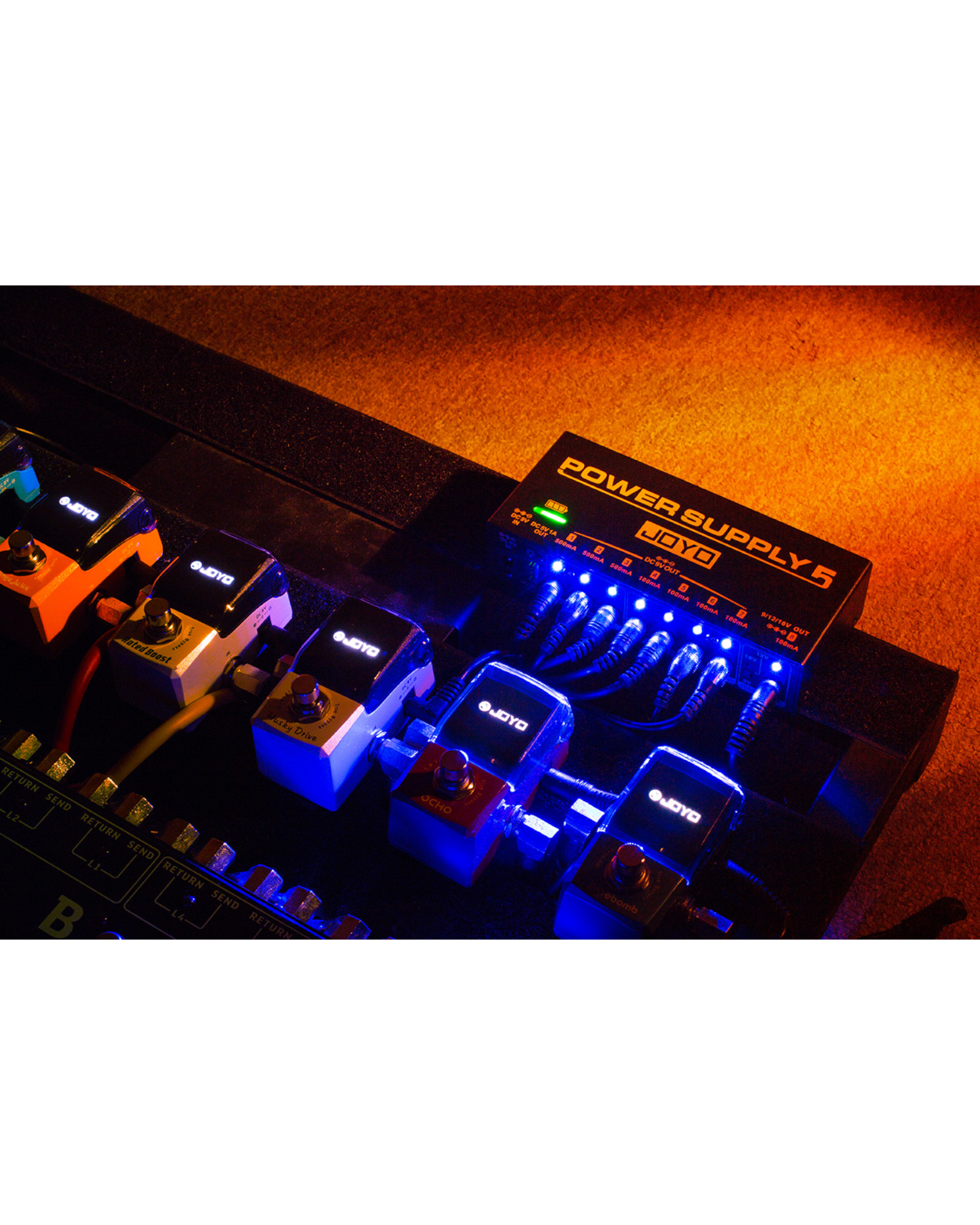

Compact and Portable Design: Lightweight and easy to transport, fitting seamlessly into your pedal board.

Independent Filters, Overload, and Short-Circuit Protection: Protects your pedals and ensures stable performance.

Polarity Converter Included: Compatible with instruments/effects requiring a centre positive supply.

The JOYO JP-05 Power Supply is a versatile and reliable power solution for guitar effects and other electronic instruments. With its robust features and portable design, it's an essential tool for any musician.

Specifications

Battery Specifications: 7.4V / 4400mAh capacity (rechargeable lithium battery pack)

Battery Features: Short Circuit Protection, Current Protection, Overload Protection, Independent Filters, Battery Level Indicator

Battery Charging Time: 2.5hrs

Battery Use Time: 2 hrs w/ high current digital pedals, +10 hrs w/ 8 analogue pedals (approximately)

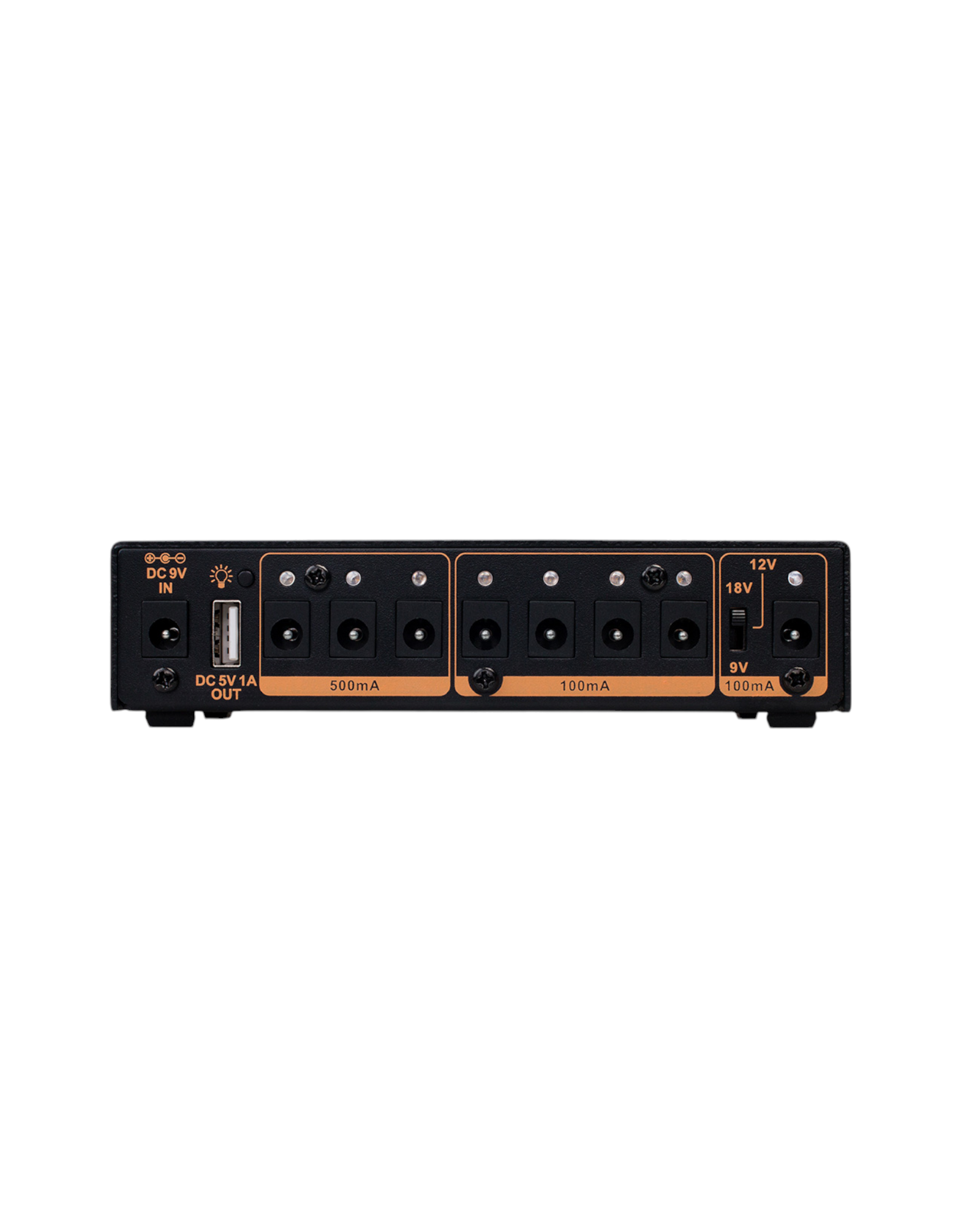

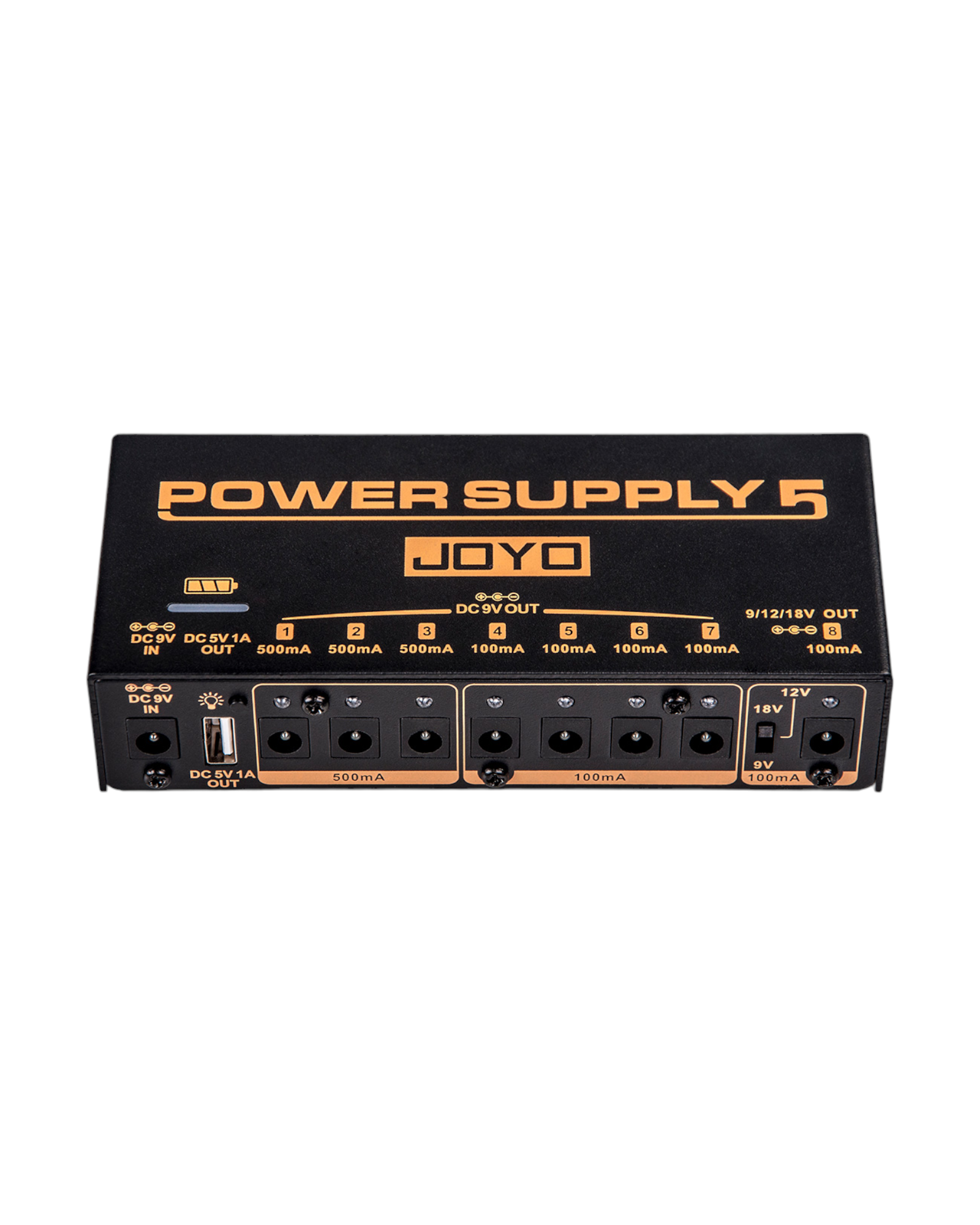

Outputs: 4 * DC 9V 100mA outputs, 3 * DC 9V 500mA outputs, 1 * DC 9V/12V/18V adjustable output (max current: 100mA), 1 * 5V 1A USB output (Note: All DC outputs are isolated negative centre)

DC Cable Plug Size: outside diameter - 5.5mm (0.22in) / inside diameter - 2.1mm (0.08in)

Reversed Polarity Cable Plug Size: outside diameter - 5.5mm (0.22in) / inside diameter - 2.1mm (0.08in)

Dimensions: 146mm (5.75in) * 65mm (2.56in) * 35mm (1.38in)

Weigh: 620g (1.37lbs)

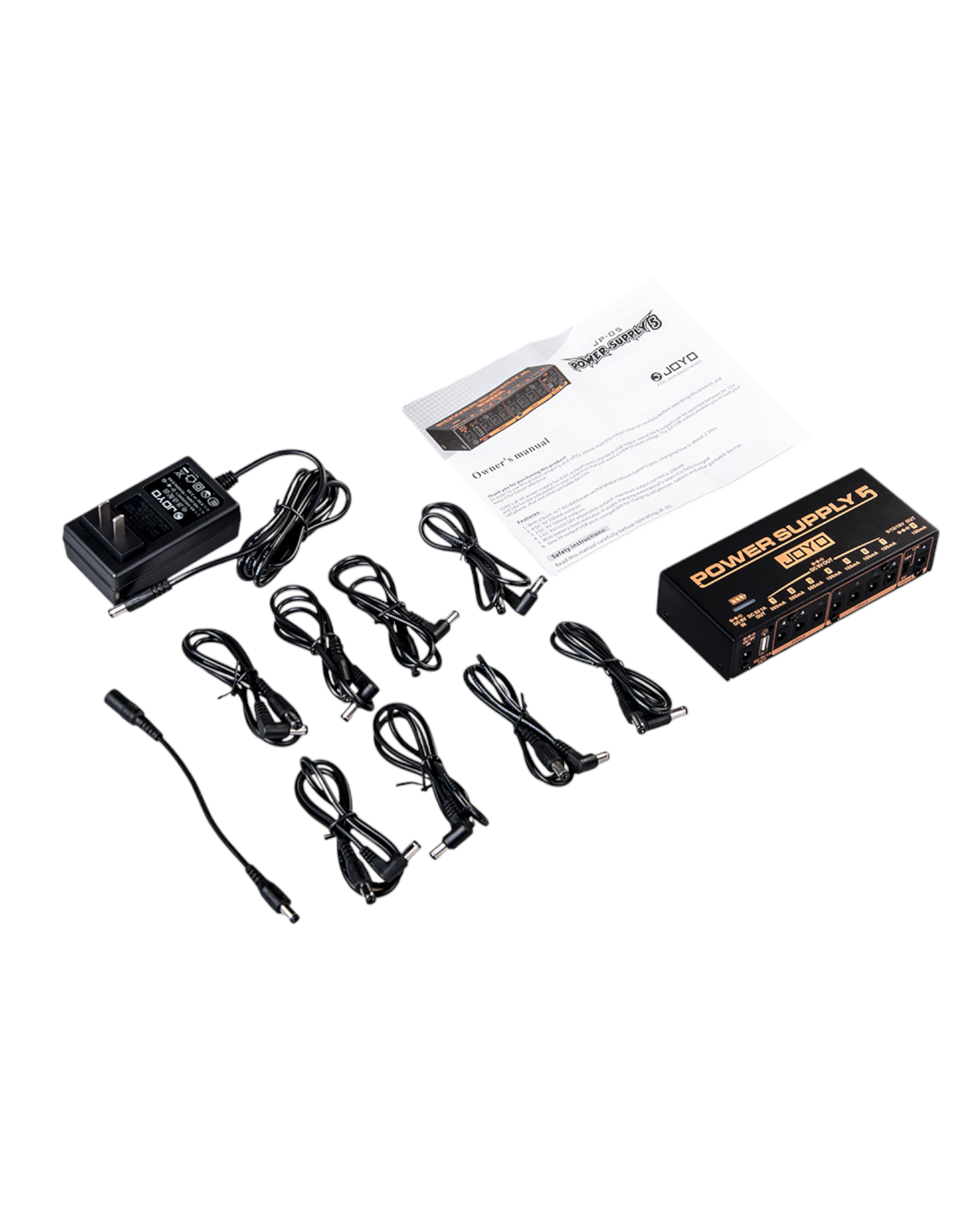

Package Includes

1 x Joyo JP05 Power Supply

1 x Owner’s Manual

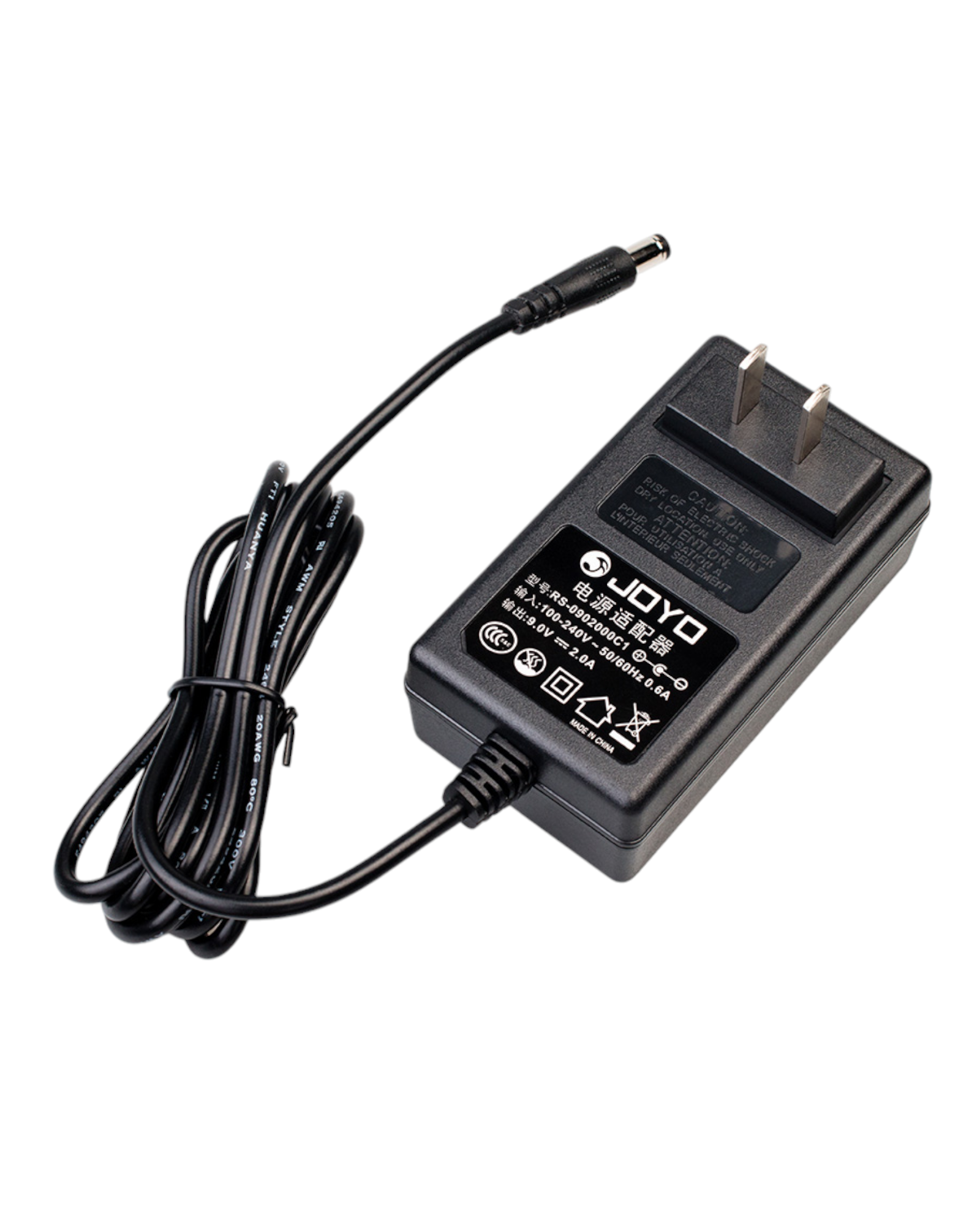

1 x 9V / 2A Power Adaptor

8 x DC Patch Cable

1 x Reversed Polarity Cable
