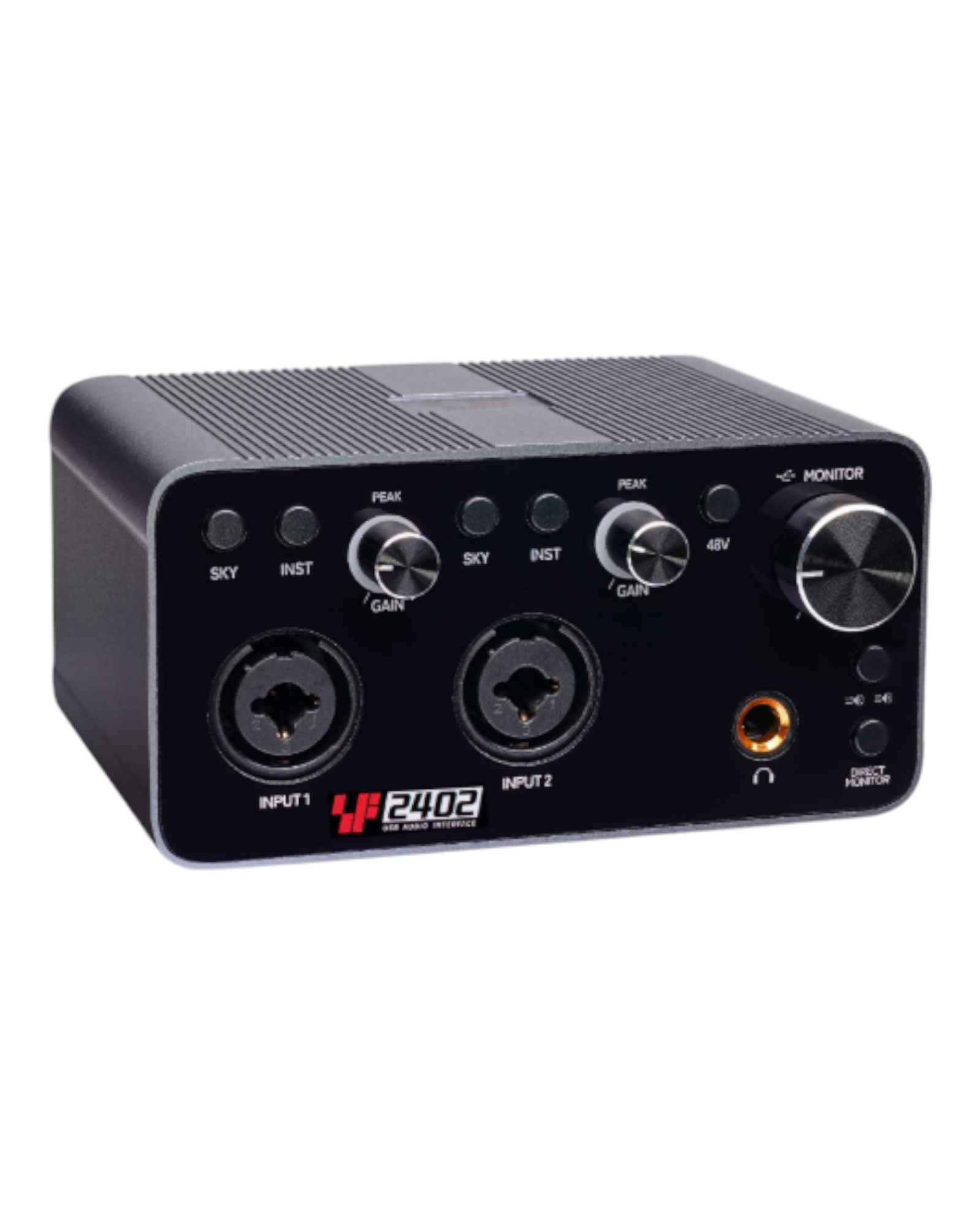

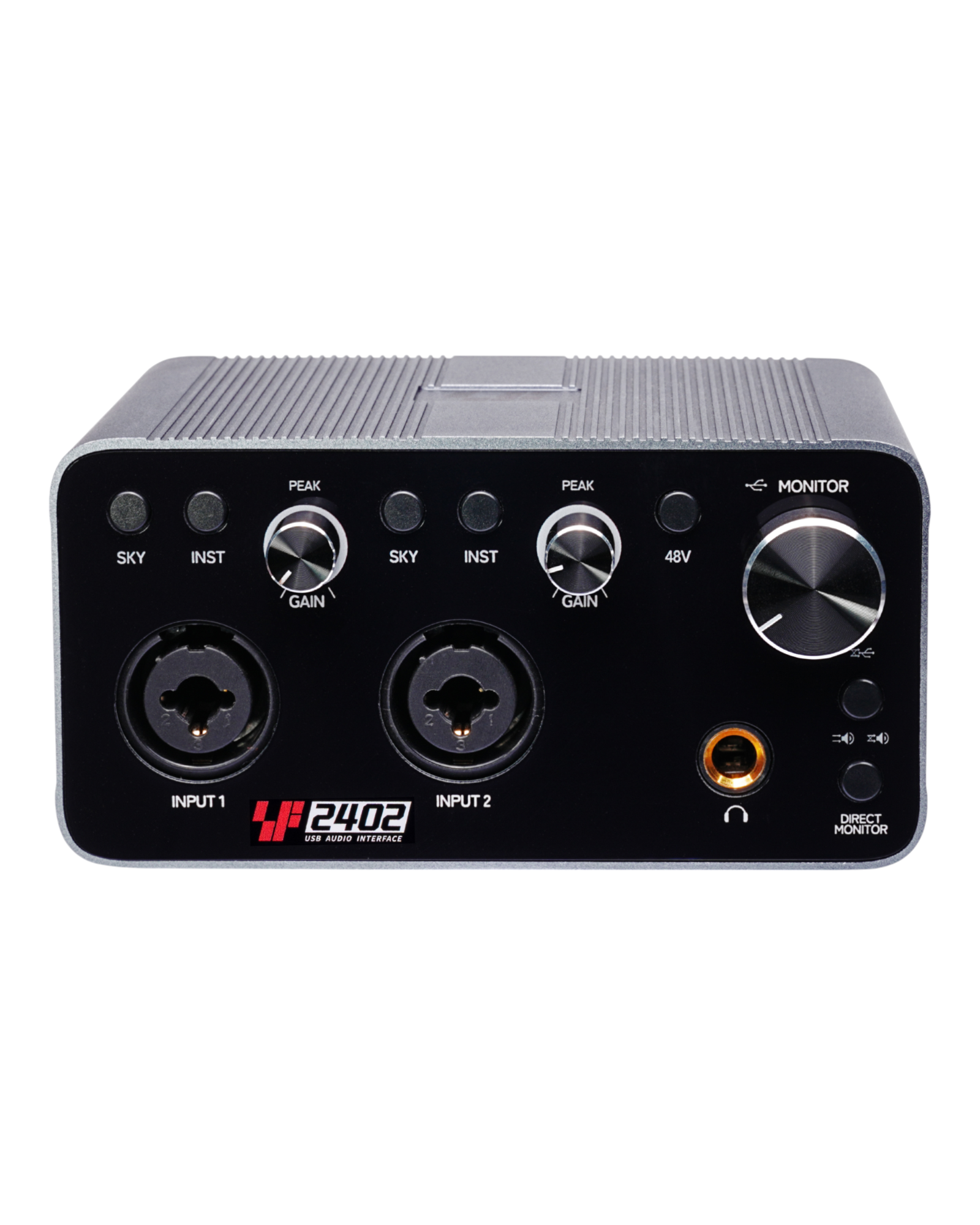

Experience exceptional audio and video quality with the Simplefly SF2402, a state-of-the-art audio-video interface designed to elevate your recording and playback experience. Featuring 24-bit/192kHz audio conversion and 4K HDMI output, the SF2402 is perfect for musicians, content creators, and mobile studios. Whether you’re recording, live streaming, or producing high-quality sound for karaoke or performances, this interface delivers professional-grade results in a compact form.

Features:

• High-Quality Audio Conversion: Enjoy pristine 24-bit/192kHz stereo audio recording and playback. With a dynamic range of 110dB and a near 100dB signal-to-noise ratio, the SF2402 captures every detail of your audio with incredible clarity.

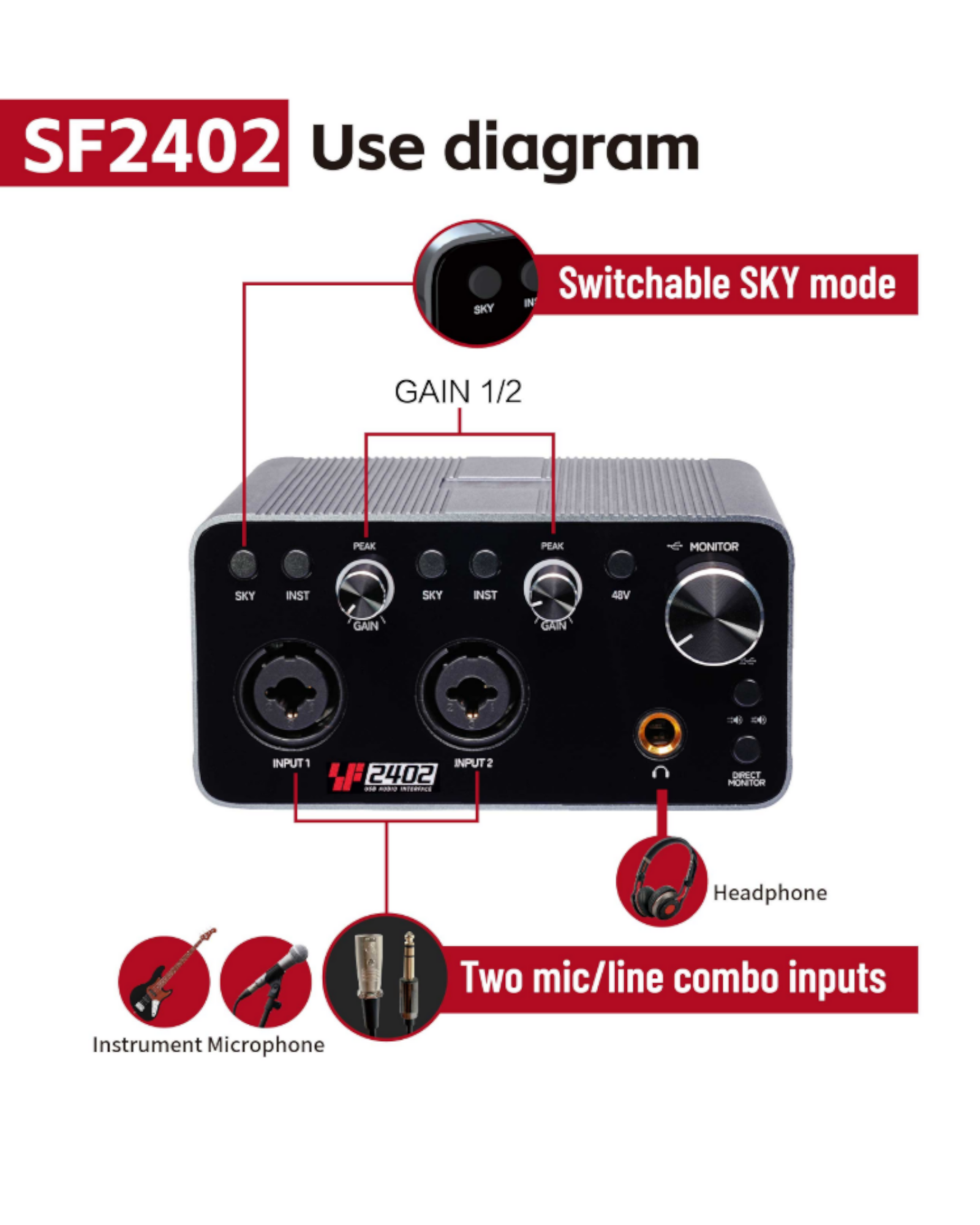

• Dual Inputs for Versatile Recording: Equipped with 6.35mm TRS and XLR composite inputs, the SF2402 accommodates microphones, instruments, or balanced audio sources. Record in stereo using both input channels simultaneously, and adjust each with independent gain controls to keep levels balanced.

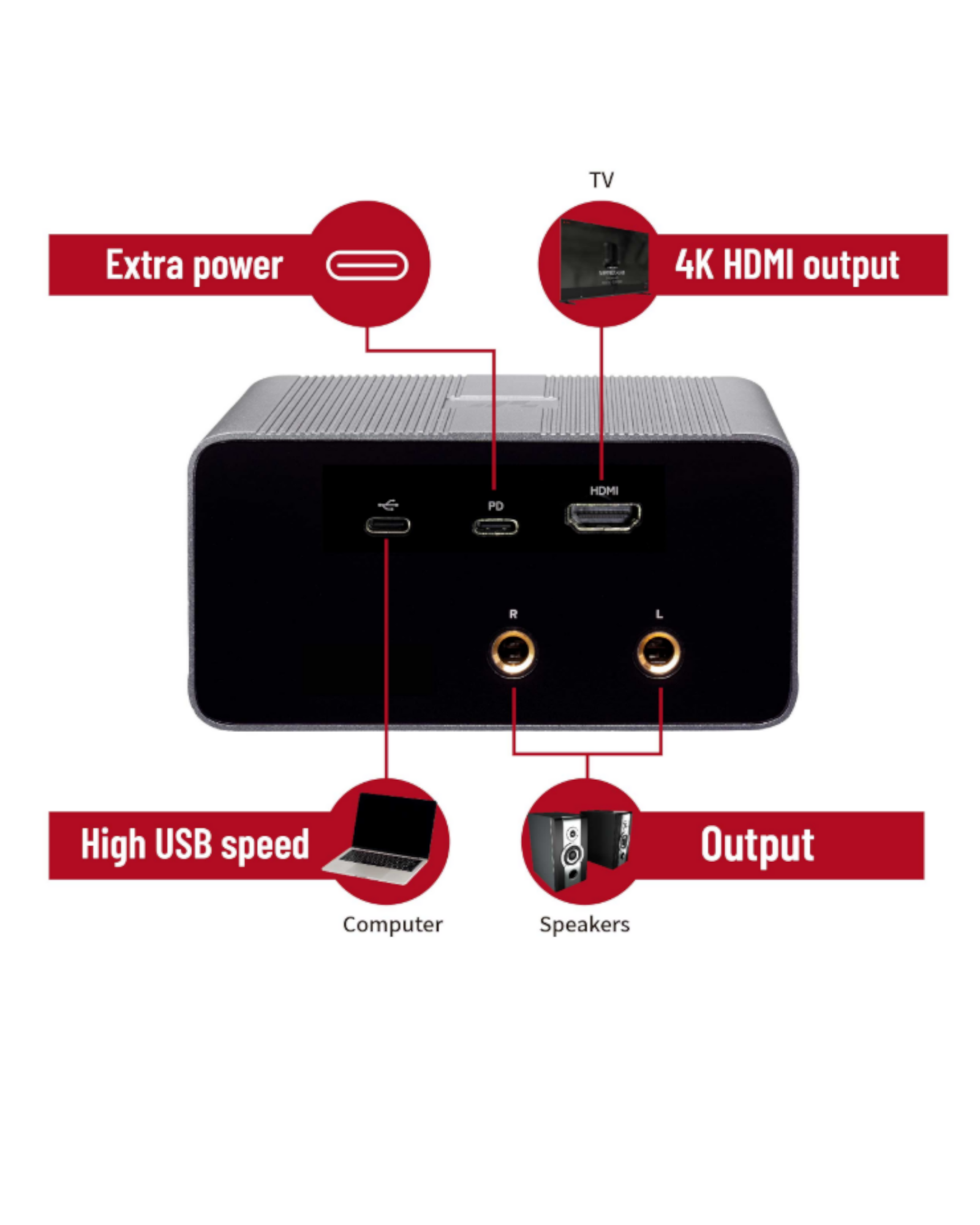

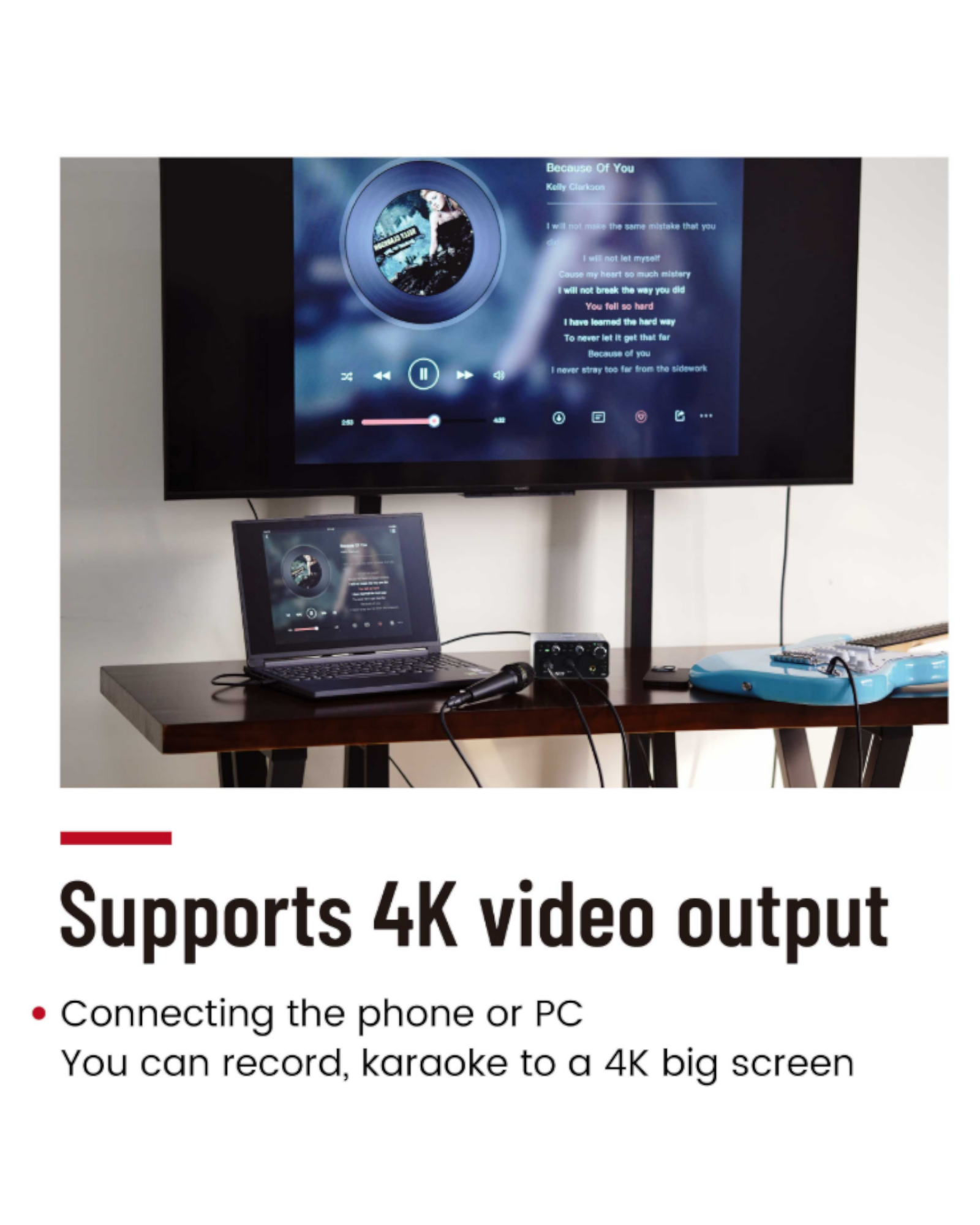

• 4K HDMI Video Output: The SF2402 integrates a USB sound card with HDMI conversion, allowing you to connect to a 4K display at 60Hz. Record and stream karaoke or performances while projecting them onto a large screen for an immersive experience.

• Simultaneous Audio and Video Output: Record audio in real time while enjoying 4K video output, perfect for live performances, streaming, and video content creation where both high-quality sound and visuals are essential.

• Sky Mode for Enhanced Clarity: Activate Sky mode to improve the clarity of your vocals and instruments, ensuring your recordings are sharp and detailed.

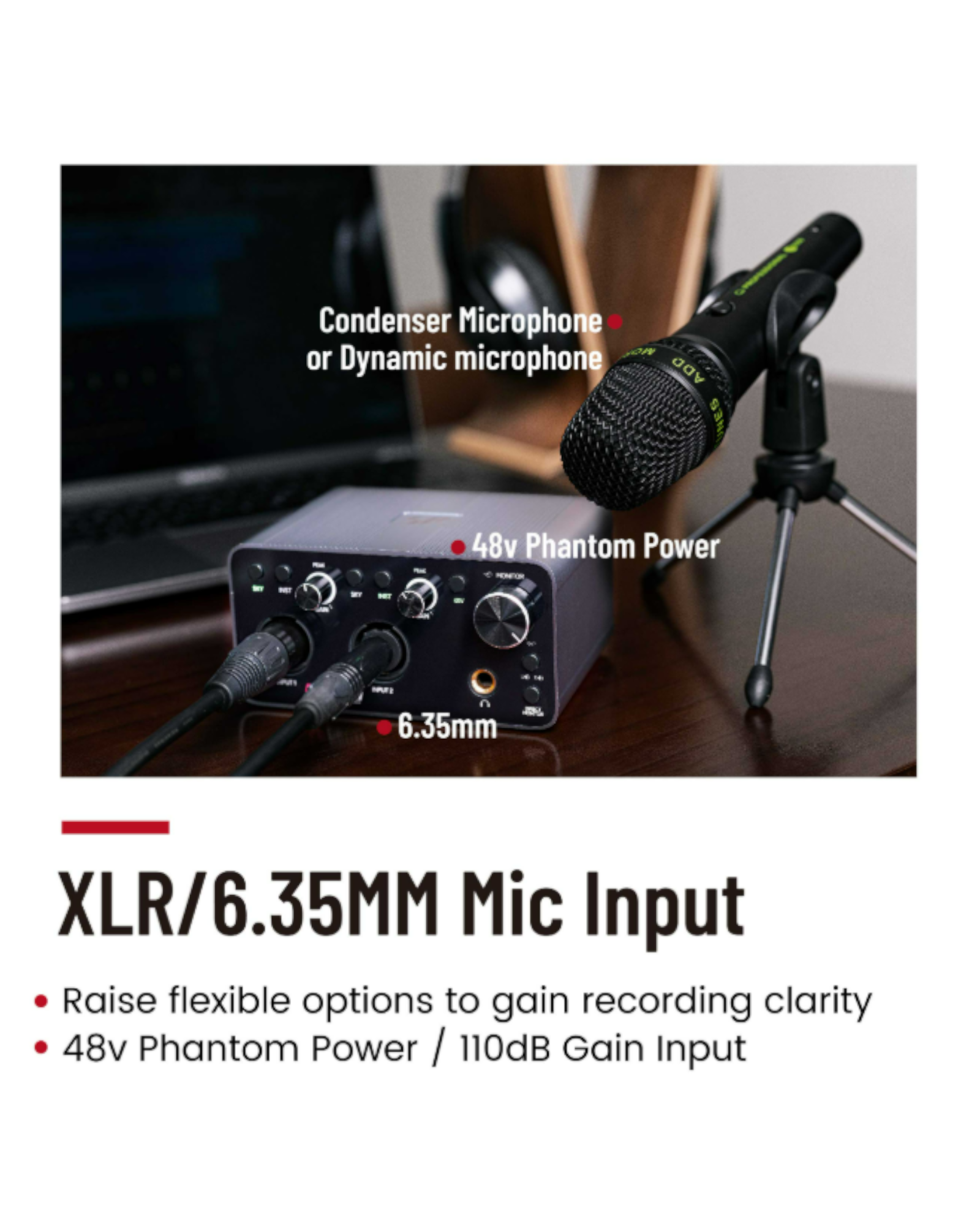

• Phantom Power for Condenser Mics: The built-in 48V phantom power supply makes it ideal for using condenser microphones, giving you a studio-grade experience for professional recordings.

• Low Latency & Clean Playback: With optimized preamp gain and near-zero latency, the SF2402 ensures authentic recordings and delivers clear, dynamic playback with its low-noise balanced outputs.

• Broad System Compatibility: Fully compatible with Mac, Windows, Android, and iOS devices, the SF2402 supports a wide variety of audio recording software and apps, making it the perfect choice for musicians, podcasters, and content creators across platforms.

The Simplefly SF2402 is an ideal solution for those looking for a compact, high-performance interface that combines top-tier audio recording with 4K video output and real-time streaming. Whether in a studio or on the go, it’s the perfect tool for producing professional-grade audio and video content.

Specifications

Model: SF2402

Line Inputs：2 (6.35mm & XLR)

Line Outputs：2 (6.35mm)

Headphone Output: 1 (6.35mm)

Video Output: 1 (HDMI)

Video Resolution: 4K / 60Hz

Power: USB 2.0 Type-C DC 5V

Sampling Rate: 24bit / 192kHz

Phantom Power: 48V (shared by both input channels)

Gain Input: 110dB

Clock Source: Built-in low jitter active crystal oscillator

Supported Sample Rates: 44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz

Supported Systems: Mac / Windows / Android / IOS

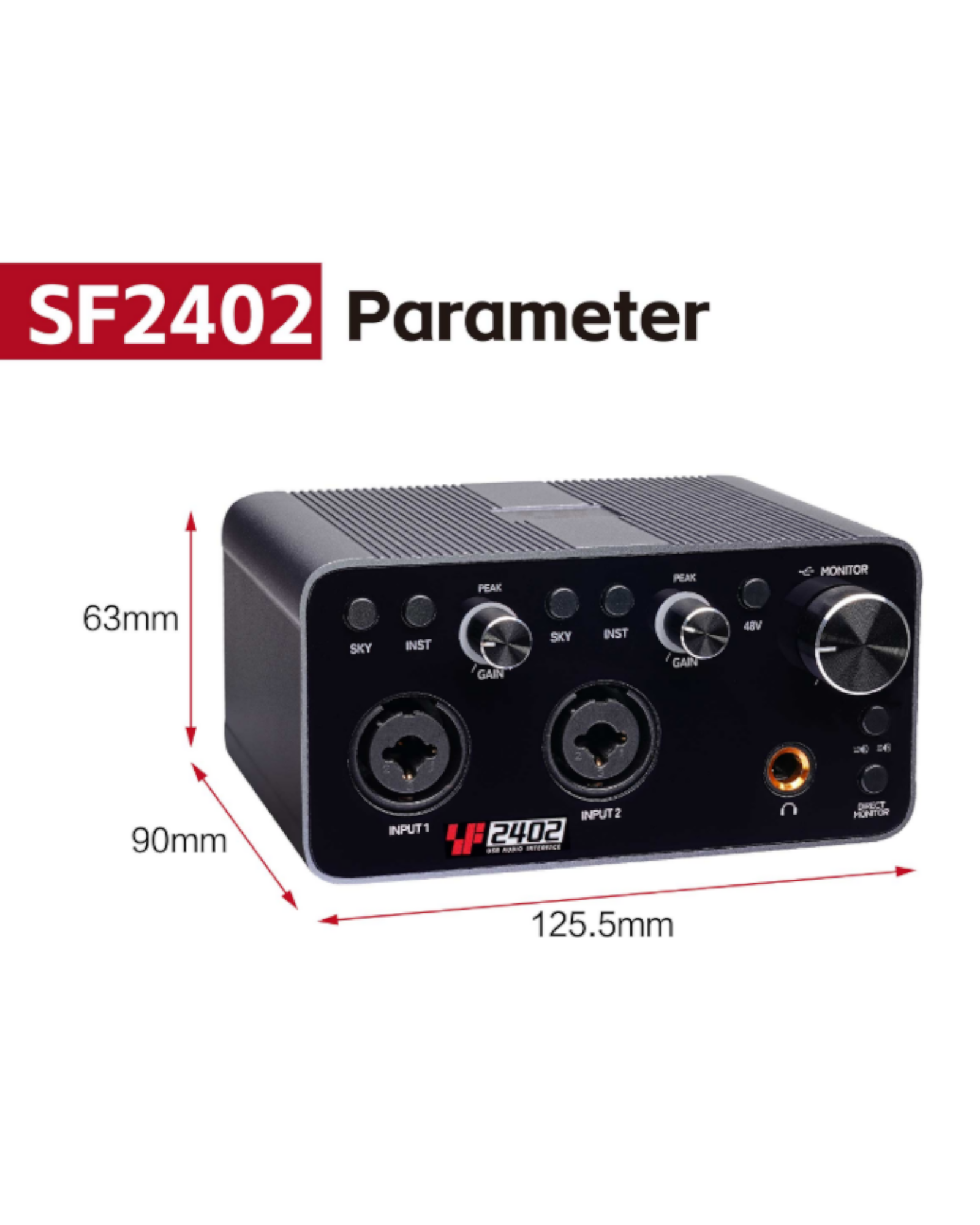

Dimensions: 125.5mm * 90mm * 63mm

Weight: 370g

Microphone Input

Dynamic Range: 110dB (A-weighted)

Frequency Response: 20Hz-20kHz <0.5dB

THD+N: <0.0012%

Equivalent Input Noise: -128dB (A-weighted)

Gain Range: -0.8 ~56dB

Input Impedance: 3kΩ

Instrument Input

Dynamic Range: 110dB (A-weighted)

Frequency Response: 20Hz-20kHz <0.5dB

THD+N: <0.03%

Maximum Input Level: +12.5dBu at minimum gain

Gain Range: -5 ~52dB

Input Impedance: 1MΩ

Line In

Dynamic Range: 110dB (A-weighted)

Frequency Response: 20Hz-20kHz <0.5dB

THD+N: <0.002%

Maximum Input Level: +22dBu at minimum gain

Gain Range: -14 ~43dB

Input Impedance: 6kΩ

Line Out 1 & 2 (Balanced)

Dynamic Range: 105dB (A-weighted)

Maximum Output Level: +15.5dBu (balanced output)

THD+N (1+2): <0.002%

Output Impedance: 420Ω

Monitor Output

Dynamic Range: 104dB (A-weighted)

Maximum Output Level: 3.8dBu

THD+N (1+2): <0.002%

Output Impedance: <1Ω

Package Includes

1 x Simplefly SF2402 Audio Interface

1 x 3.5mm Socket to 6.35mm Male Jack Adaptor

1 x USB-C Cable

1 x User Manual

-
